AUO T320XVN02.G CELL lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD


T320XVN02.G CELL

T320XVN02.G CELL

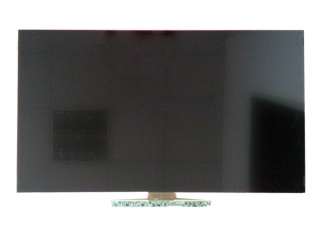

T320XVN02.G CELL thumb
Jenama
AUO
Saiz
32.0
Permohonan
TV Sets
Resolusi
1366×768
Komposisi
CELL ,   a-Si TFT-LC
Kecerahan
CR
3000:1
Warna
16.7M
Lampu latar
No
Antara muka
LVDS
In Stock
6498
Spesifikasi

Nombor Bahagian T320XVN02.G CELL
JenamaAUO
Saiz32.0
PermohonanTV Sets
Resolusi1366×768
KomposisiCELL ,   a-Si TFT-LC
Kecerahan
CR3000:1
Warna16.7M
Lampu latarNo
Antara mukaLVDS
pengilangAUO
saiz skrin32.0 inch
nombor piksel1366×768(RGB)   (WXGA)  49PPI
kawasan aktif (mm)697.685 × 392.256 (H×V)
kawasan bezel (mm)-
kecerahan0 cd/m²
sudut pandangan89/89/89/89 (Typ.)(CR≥10)
pandangan yang baik diSymmetry
ketebalan kaca0.50+0.50 mm
kedalaman warna16.7M   70% NTSC
jisim880g (Typ.)
kadar segar semula60Hz
senarai ic pemanduBuilt-in COF 1 source chips
jenis isyaratLVDS (1 ch, 8-bit) , 30 pins Connector
bekalan voltan12.0V (Typ.)
maks. penilaianStorage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
nama modelT320XVN02.G CELL
jenis skrinCELL ,   a-Si TFT-LCD
susunanRGB Horizontal Stripe
garis besar (mm)713.685 × 408.72 × 1.4 (H×V×D)
rawatanAntiglare (Haze 2%), Hard coating (3H)
nisbah kontras3000 : 1 (Typ.) (TM)
tindak balas8 (Typ.)(G to G) ms
mod kerjaAMVA, Normally Black, Transmissive
ketransmisian6.5% (Typ.)(with Polarizer)
lampu latarNo B/L
digunakan untukTV Sets
skrin sentuhWithout
