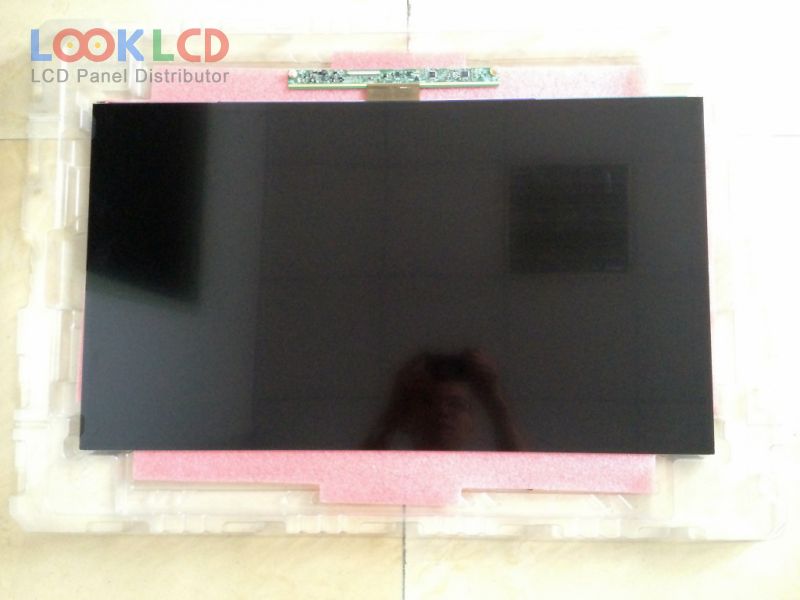

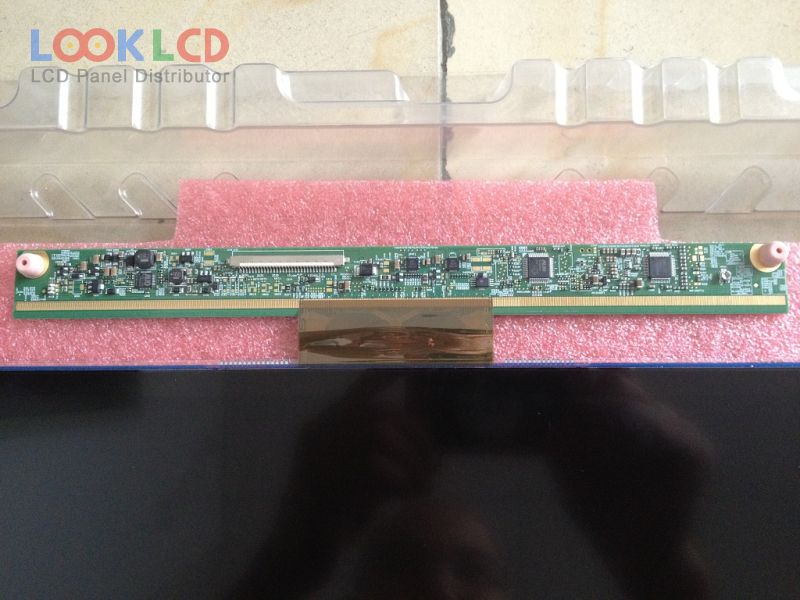

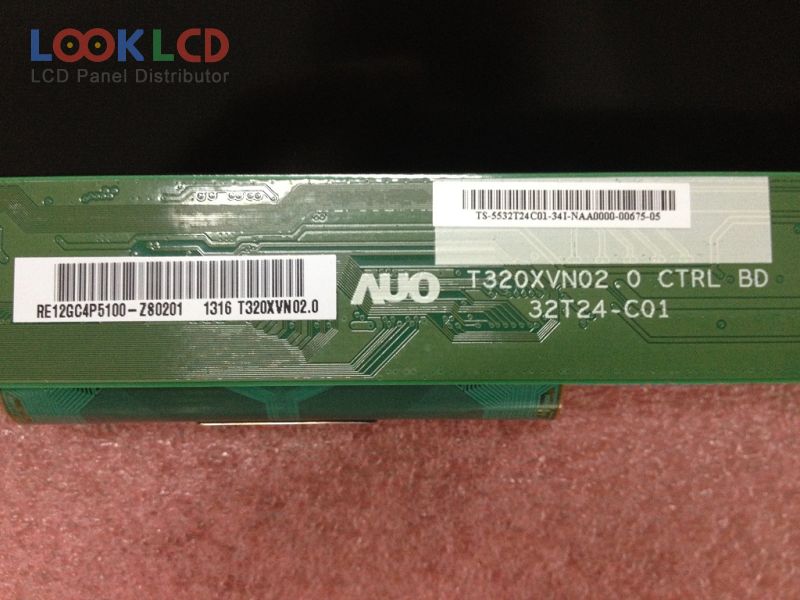

T320XVN02.0 CELL

T320XVN02.0 CELL
T320XVN02.0 CELL
T320XVN02.0 CELL
T320XVN02.0 CELL thumb T320XVN02.0 CELL thumb T320XVN02.0 CELL thumb
Jenama
AUO
Saiz
31.5
Permohonan
LCTV
Resolusi
1366×768
Komposisi
CELL
Kecerahan
0
CR
3000:1
Warna
16.7M
Lampu latar
No B/L
Antara muka
LVDS
In Stock
10795
Spesifikasi

Nombor Bahagian T320XVN02.0 CELL
JenamaAUO
Saiz31.5
PermohonanLCTV
Resolusi1366×768
KomposisiCELL
Kecerahan0
CR3000:1
Warna16.7M
Lampu latarNo B/L
Antara mukaLVDS
jenama panelAUO
model panelT320XVN02.0 CELL
jenis panel a-Si TFT-LCD , CELL
saiz panel31.5 inch
resolusi1366×768(RGB) , WXGA
mod paparanAMVA, Normally Black, Transmissive
kawasan aktif697.685×392.256 mm
garis besar713.68×408.72 mm
permukaanAntiglare, Hard coating (3H)
kedalaman kaca0.50+0.50 mm
ketransmisian7.2% (Typ.)(with Polarizer)
nisbah kontras3000:1 (Typ.)
warna paparan16.7M (8-bit), CIE193172%
masa tindak balas6.5 (Typ.)(G to G)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
antara muka isyaratLVDS (1 ch, 8-bit), 30 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
