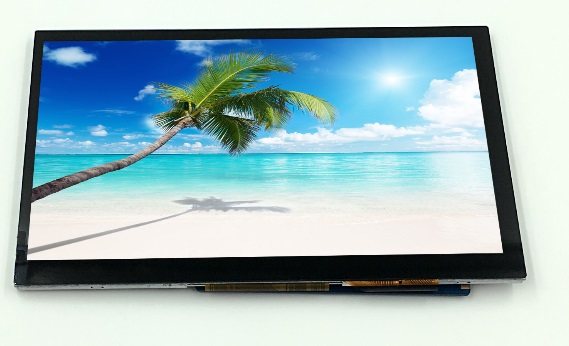

| Nombor Bahagian | S101WS07 |
| Jenama | CDTECH |
| Saiz | 10.1 |
| Permohonan | Industrial |
| Resolusi | 1024×600 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | 3S6P |
| Antara muka | Parallel |
| pengilang | CDTECH |
| saiz skrin | 10.1 inch |
| nombor piksel | 1024(RGB)×600 (WSVGA) 117PPI |
| kawasan aktif (mm) | 222.72 × 125.28 (H×V) |
| kawasan bezel (mm) | 226.34 × 128.1 (H×V) |
| kecerahan | 200 cd/m² (Typ.) |
| sudut pandangan | 65/65/55/65 (Typ.)(CR≥10) |
| pandangan yang baik di | 12 o'clock |
| kedalaman warna | 16.7M |
| jisim | TBD |
| kadar segar semula | 60Hz |
| jenis isyarat | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| bekalan voltan | 3.3/10.85/21/-5.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| nama model | S101WS07 |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 235 × 143 × 5.39 (H×V×D) |
| rawatan | - |
| nisbah kontras | 600 : 1 (Typ.) (TM) |
| tindak balas | 6/20 (Typ.)(Tr/Td) ms |
| mod kerja | TN, Normally White, Transmissive |
| lampu latar | 3S6P WLED , 25K hours , No Driver |
| digunakan untuk | Industrial |
| skrin sentuh | Without |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| LP101WH4-SLAB | LG Display | 10.1 | 1366×768 |
| LTN101AT03-801 | Samsung | 10.1 | 1366×768 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
