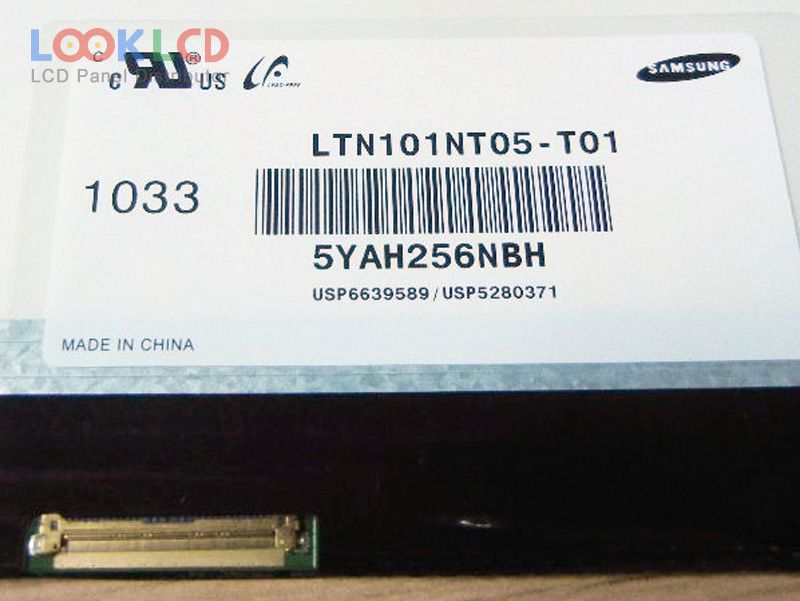

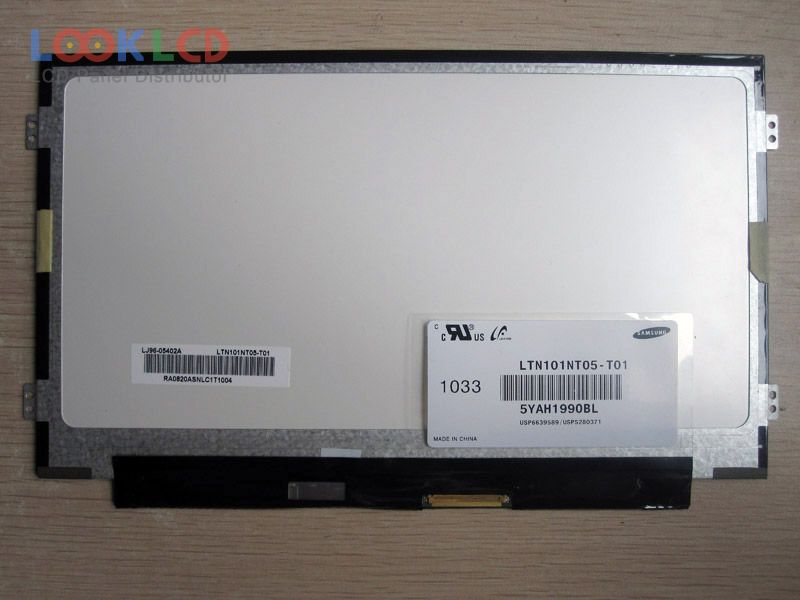

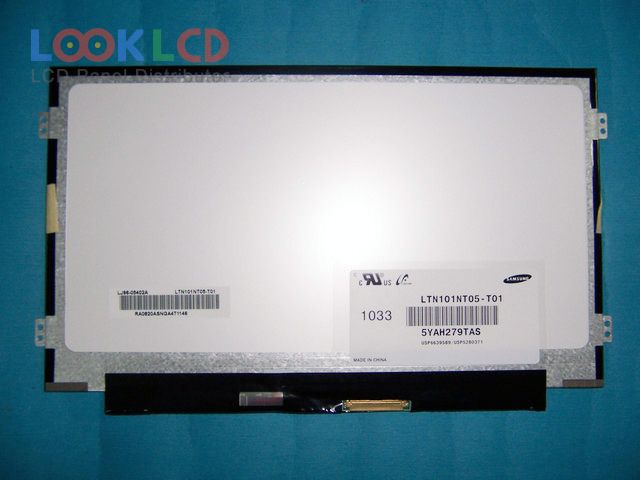

| Nombor Bahagian | LTN101NT05-T01 |
| Jenama | Samsung |
| Saiz | 10.1 |
| Permohonan | NOPC |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN101NT05-T01 2 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 222.72×125.28 mm |
| garis besar | 245×146.5×3.6 mm |
| gaya bentuk | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Min.) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 8S2PWLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NOPC |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| LTN101NT02-L01 | Samsung | 10.1 | 1024×600 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| LTN101NT07-W01 | Samsung | 10.1 | 1024×600 |
| LTN101NT08-T01 | Samsung | 10.1 | 1024×600 |
| B089AW01 V2 | AUO | 8.9 | 1024×600 |
| B101AW01 V2 HW5A | AUO | 10.1 | 1024×576 |
| B101AW03 V1 | AUO | 10.1 | 1024×600 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| LP101WSA-TLN1 | LG Display | 10.1 | 1024×600 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
