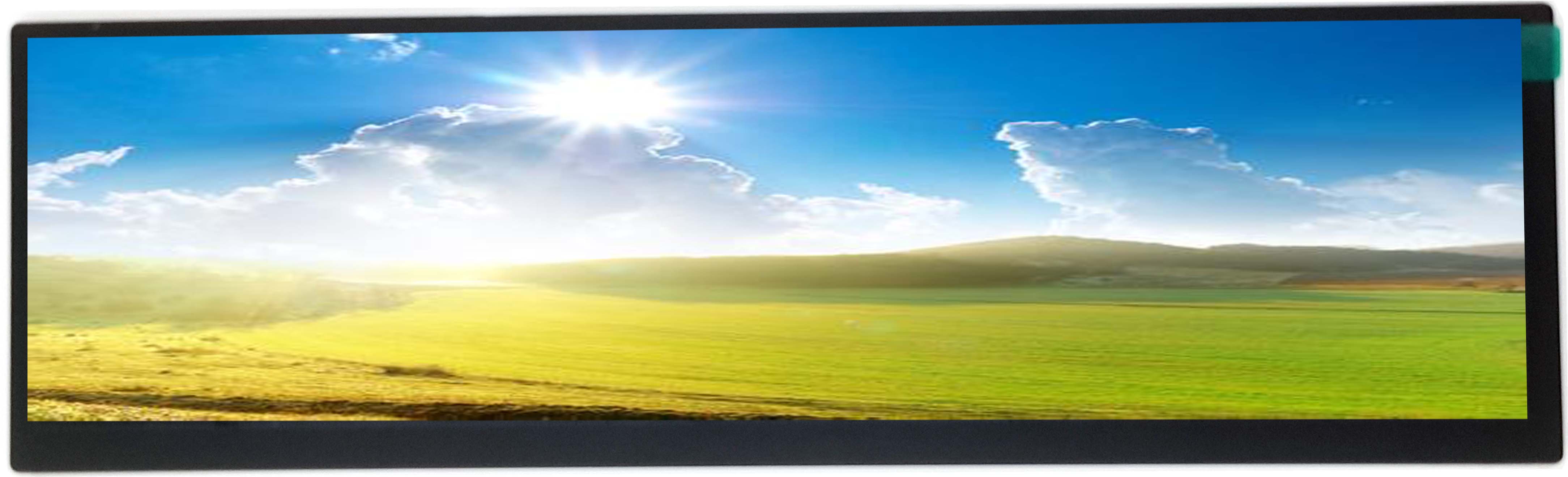

| Nombor Bahagian | S088WU02 |
| Jenama | CDTECH |
| Saiz | 8.8 |
| Permohonan | Industrial Stretched |
| Resolusi | 1920×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 4S9P |
| Antara muka | LVDS |
| jenama panel | CDTECH |
| saiz panel | 8.8" (2/5 cut of 10.1") |
| resolusi | 1920(RGB)×480, 224PPI |
| kawasan paparan | 216.86(W)×54.22(H) mm |
| saiz garis besar | 229.66(W)×67.5(H) ×4.3(D) mm |
| kecerahan | 600 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M |
| kekerapan | 60Hz |
| berat panel | - |
| antara muka isyarat | LVDS (1 ch, 8-bit) , 40 pins Connector |
| voltan masukan | 3.3/9.89/21.88/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| persekitaran | Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | S088WU02 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 221.2(W)×57.84(H) mm |
| permukaan | Hard coating |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | IPS, Normally Black, Transmissive |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| jenis lampu | 4S9P WLED , 30K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Industrial Stretched Bar LCD |
