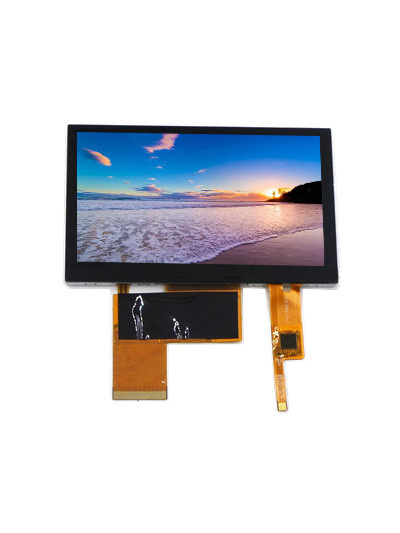

| Nombor Bahagian | S043WQ07H-CT6 |
| Jenama | CDTECH |
| Saiz | 4.3 |
| Permohonan | Automotive Display I |
| Resolusi | 480×272 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | 5S2P |
| Antara muka | Parallel |
| jenama panel | CDTECH |
| saiz panel | 4.3" |
| resolusi | 480(RGB)×272, WQVGA, 128PPI |
| kawasan paparan | 95.04(W)×53.856(H) mm |
| saiz garis besar | 105.5(W)×67.2(H) ×4.51(D) mm |
| kecerahan | 450 cd/m² (Typ.) |
| sudut pandangan | 65/65/55/65 (Typ.)(CR≥10) |
| pandangan terbaik pada | 6 o'clock |
| warna paparan | 16.7M 50% NTSC |
| kekerapan | 60Hz |
| berat panel | TBD |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | S043WQ07H-CT6 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 97.84(W)×56.66(H) mm |
| permukaan | Antiglare, Hard coating (6H) |
| nisbah kontras | 500:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| jenis lampu | 5S2P WLED , 25K hours , Without Driver |
| skrin sentuh | PCAP |
| permohonan | Automotive Display Industrial |
