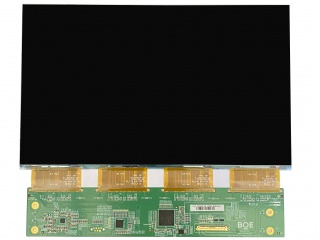

| Nombor Bahagian | RV101FBB-N00 |
| Jenama | BOE |
| Saiz | 10.1 |
| Permohonan | 3D Printer |
| Resolusi | 4920×2880 |
| Komposisi | a-Si TFT-LCD, CELL |
| Kecerahan | |
| CR | 400:1 |
| Warna | Monochrome |
| Lampu latar | No |
| Antara muka | eDP |
| jenama panel | BOE |
| model panel | RV101FBB-N00 |
| saiz panel | 10.1" |
| jenis panel | a-Si TFT-LCD, CELL |
| resolusi | 4920×2880, 564PPI |
| format piksel | Rectangle |
| kawasan paparan | 221.4(W)×129.6(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 227.43(W)×139.5(H) ×0.95(D) mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 0 cd/m² |
| nisbah kontras | 400:1 (Min.) (TM) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| mod paparan | ADS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 35 (Max.)(Tr+Td) |
| kedalaman kaca | - |
| ketransmisian | 6.0% (Typ.) |
| warna paparan | Monochrome |
| jenis lampu | No B/L |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| ic pemandu | COGBuilt-in 4 source chips |
| berat panel | TBD |
| permohonan | 3D Printer |
| antara muka isyarat | eDP (4 Lanes) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -10 ~ 80 °C |
