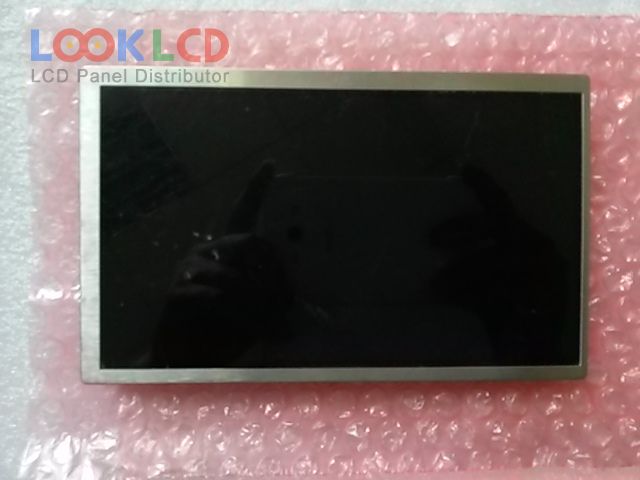

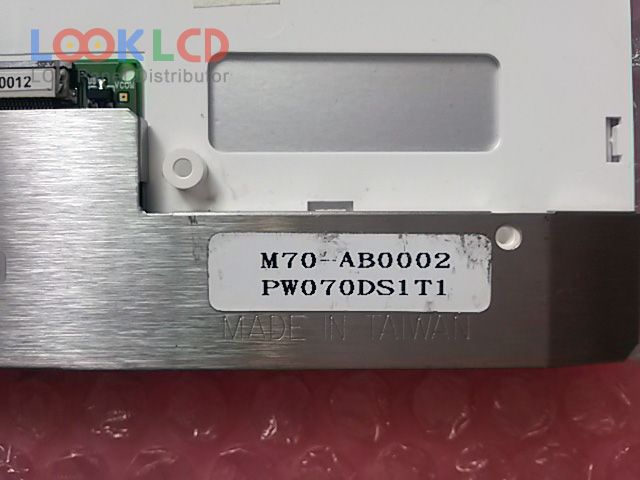

| Nombor Bahagian | PW070DS1T1 |
| Jenama | E Ink |
| Saiz | 7.0 |
| Permohonan | VDP |
| Resolusi | 480×234 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 150:1 |
| Warna | |
| Lampu latar | CCFL |
| Antara muka | Analog |
| jenama panel | PVI |
| model panel | PW070DS1T1 3 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 480(RGB)×234 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 154.08×87.05 mm |
| garis besar | 166.9×101.8 mm |
| permukaan | Antiglare, Hard coating |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 150:1 (Typ.) |
| warna paparan | |
| masa tindak balas | 30/50 (Max.)(Tr/Td) |
| sudut pandangan | 55/55/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Analog RGB + Composite Video (NTSC/PAL), 30 pins |
| voltan masukan | 3.3/5.0/17/-12V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| permohonan | VDP |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| PM070WL3 | E Ink | 7.0 | 800×480 |
| PW070DS1T1 | E Ink | 7.0 | 480×234 |
| PW070DS1T2 | E Ink | 7.0 | 480×234 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
| PW070NS1W2 | E Ink | 7.0 | 480×320 |
| PW070XU3 | E Ink | 7.0 | 480×234 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| A040CN01 V2 | AUO | 4.0 | 480×234 |
| A056DN01 | AUO | 5.6 | 320×234 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| CLAA070WA03 | CPT | 7.0 | 480×234 |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| PA064DS1 | E Ink | 6.4 | 320×234 |
| PW070DS1T2 | E Ink | 7.0 | 480×234 |
