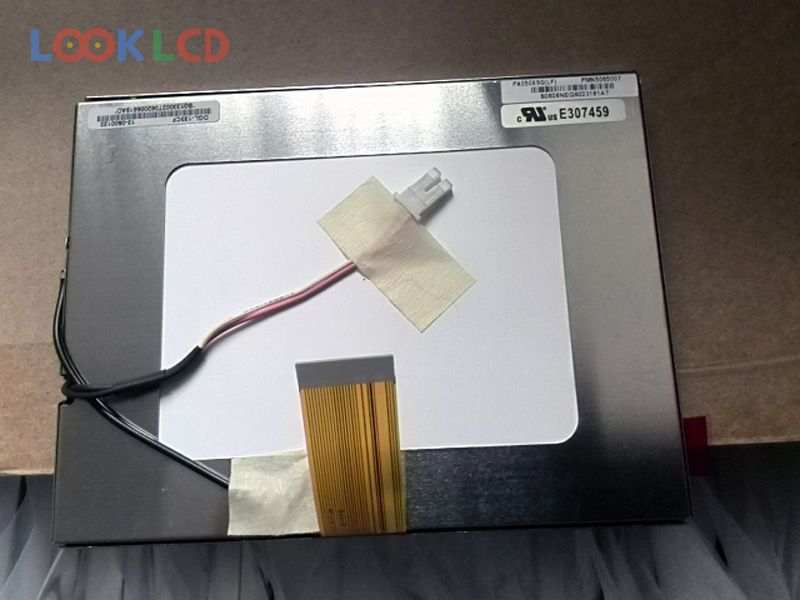

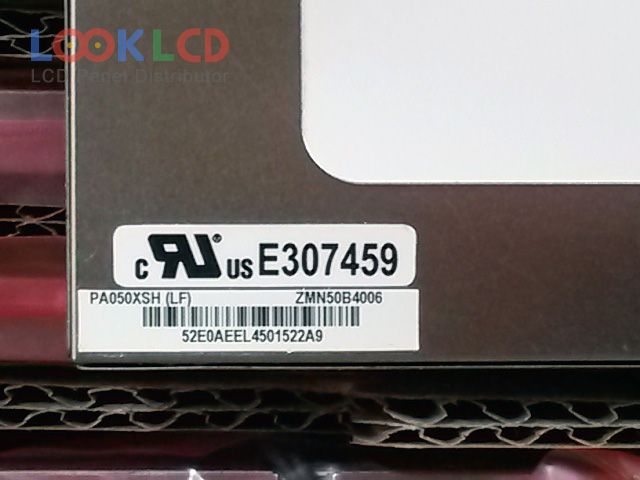

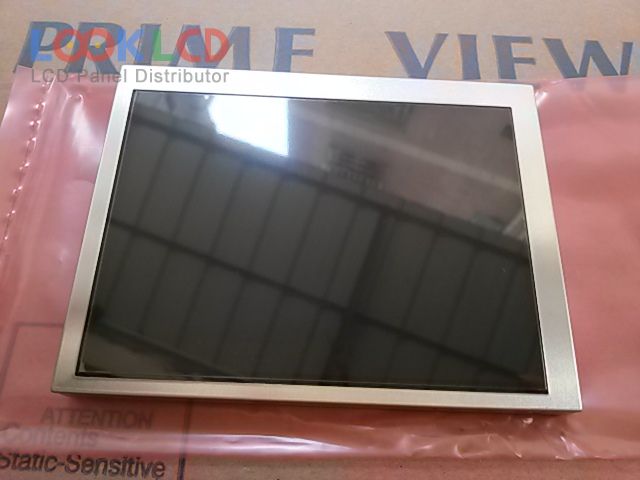

| Nombor Bahagian | PA050XSH |
| Jenama | E Ink |
| Saiz | 5.0 |
| Permohonan | VDP |
| Resolusi | 320×234 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 400:1 |
| Warna | Full color |
| Lampu latar | WLED |
| Antara muka | Analog |
| jenama panel | PVI |
| model panel | PA050XSH |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.0 inch |
| resolusi | 320(RGB)×234 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 102.72×74.53 mm |
| garis besar | 119.3×91.4×7.8 mm |
| permukaan | Antiglare |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | Full color |
| masa tindak balas | 15/30 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 3S5PWLEDWithout Driver |
| antara muka isyarat | TFT Specific Analog RGB, 30 pins |
| voltan masukan | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL) |
| permohonan | VDP |
| PA050DS2T1 | E Ink | 5.0 | 320×234 |
| PA050DS4 | E Ink | 5.0 | 320×234 |
| PA050DS7 | E Ink | 5.0 | 320×234 |
| PA050DS7N1 | E Ink | 5.0 | 320×234 |
| PA050DT2 | E Ink | 5.0 | 320×234 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| PA050XSG | E Ink | 5.0 | 320×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| PA050XU4 | E Ink | 5.0 | 320×234 |
| A040CN01 V2 | AUO | 4.0 | 480×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| AT050TN23 V.1 | Innolux | 5.0 | 640×480 |
| DLC0500AIG-2 | Other | 5.0 | 640×480 |
| EE050NA-04A | Innolux | 5.0 | 640×480 |
| HSD050I551-A00 | HannStar | 5.0 | 320×234 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LQ070T5BG01 | SHARP | 7.0 | 480×234 |
| LQ6AN101 | SHARP | 5.6 | 320×234 |
| PW056XU1 | E Ink | 5.5 | 480×234 |
