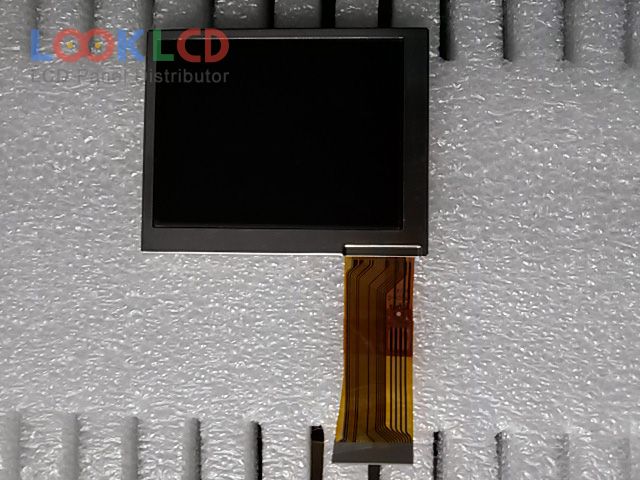

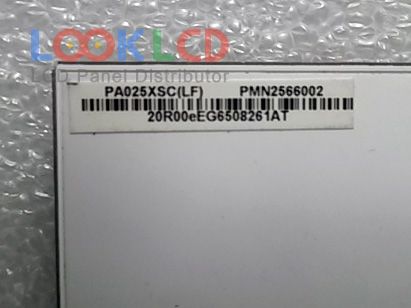

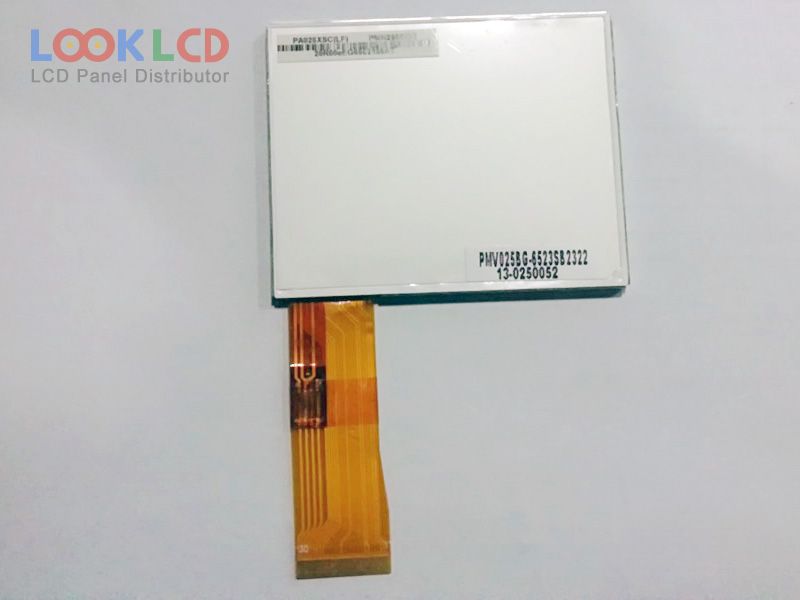

| Nombor Bahagian | PA025XSC |
| Jenama | E Ink |
| Saiz | 2.5 |
| Permohonan | DSC |
| Resolusi | 480×234 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 350:1 |
| Warna | Full color |
| Lampu latar | WLED |
| Antara muka | Analog |
| jenama panel | PVI |
| model panel | PA025XSC |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.5 inch |
| resolusi | 480×234 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 49.68×37.44 mm |
| garis besar | 60.6×48.4×3.75 mm |
| permukaan | Antiglare |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 350:1 (Typ.) |
| warna paparan | Full color |
| masa tindak balas | 15/25 (Typ.)(Tr/Td) |
| sudut pandangan | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 4S1PWLEDWithout Driver |
| antara muka isyarat | TFT Specific Analog RGB, 30 pins |
| voltan masukan | 3.3/5.0/5.0/15.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| permohonan | DSC |
| 990000738A | Innolux | 3.5 | 320×240 |
| A018AN03 V1 | AUO | 1.8 | 280×220 |
| A024CN02 VJ | AUO | 2.4 | 480×234 |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| A025DN01 V3 | AUO | 2.5 | 320×240 |
| A027DN01 VB | AUO | 2.7 | 320×240 |
| A027DN03 V4 | AUO | 2.7 | 320×240 |
| L3F04X-80300C | Epson | 0.48 | 1024×768 |
| TD030MHEB3 | TPO | 3.0 | 320×240 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
