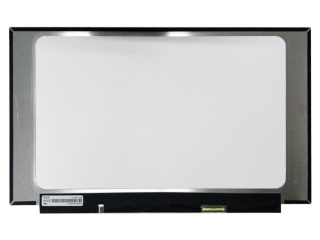

| Nombor Bahagian | NV156FHM-NY1 |
| Jenama | BOE |
| Saiz | 15.6 |
| Permohonan | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | 6 |
| Antara muka | eDP |
| pengilang | BOE |
| nama model | NV156FHM-NY1 (BOE085C) |
| saiz skrin | 15.6 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 344.16 × 193.59 (H×V) |
| garis besar (mm) | 350.66 × 216.25 × 2.6 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare (Haze 25%) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 1200 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 16.4 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | HADS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 72% NTSC |
| lampu latar | 6 strings WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| digunakan untuk | Laptop Gaming |
| kadar segar semula | 144Hz |
| skrin sentuh | Without |
| jenis isyarat | eDP (2 Lanes) , HBR2 (5.4G/lane) , Connector 30 pins |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
