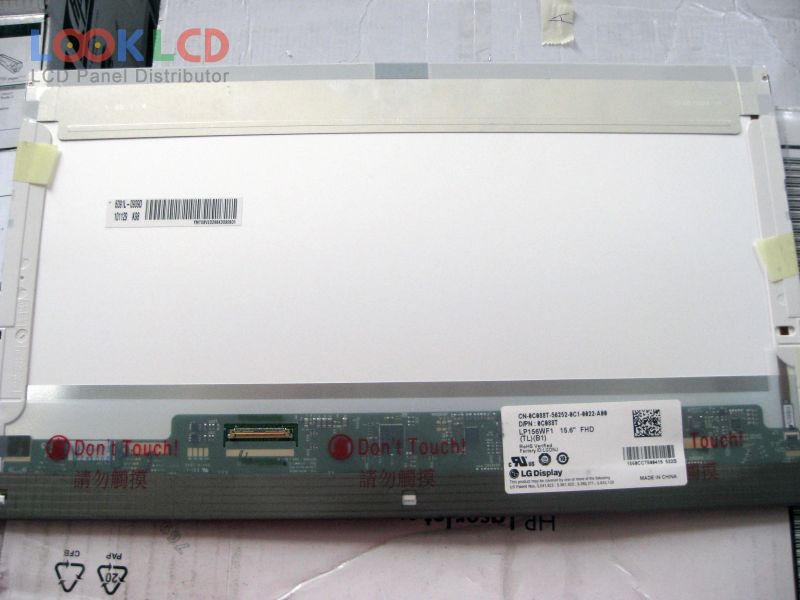

| Nombor Bahagian | LP156WF1-TLB1 |
| Jenama | LG Display |
| Saiz | 15.6 |
| Permohonan | NBPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | LG Display |
| model panel | LP156WF1-TLB1 20 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.6 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 344.16×193.59 mm |
| garis besar | 359.3×209.5×5.7 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Min.) |
| warna paparan | 262K (6-bit), CIE193160% |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| sudut pandangan | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |

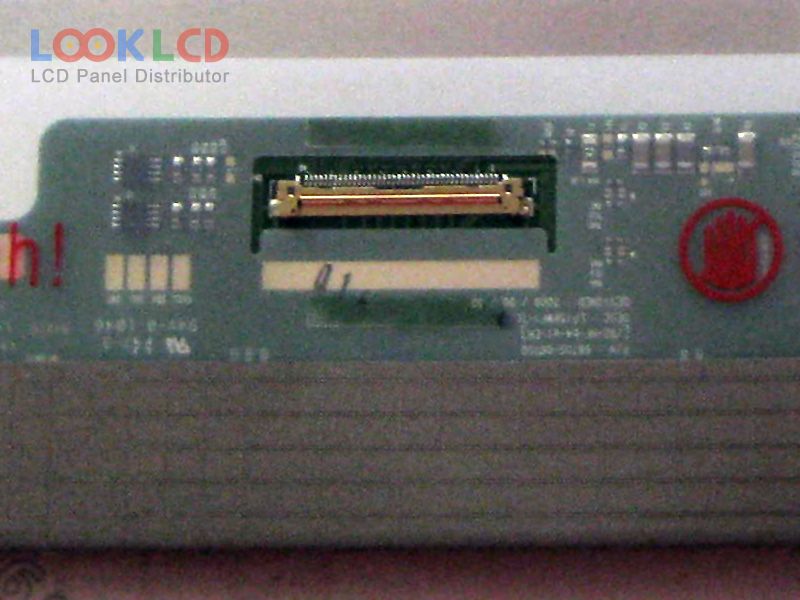

| antara muka isyarat | LVDS (2 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
