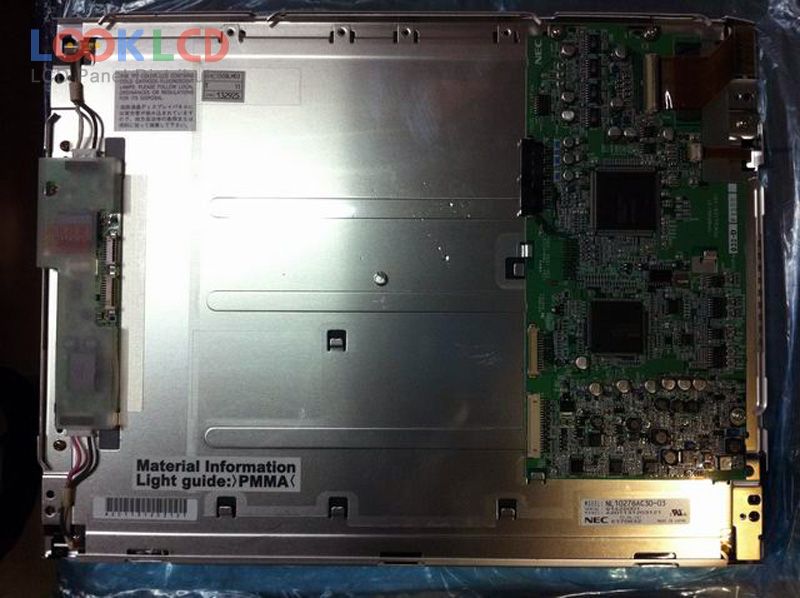

| Nombor Bahagian | NL10276AC30-03 |
| Jenama | NLT |
| Saiz | 15.0 |
| Permohonan | DMPC |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 200:1 |
| Warna | Full color |
| Lampu latar | CCFL |
| Antara muka | Analog |
| jenama panel | NEC |
| model panel | NL10276AC30-03 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.0 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 304.128×228.096 mm |
| garis besar | 350×265×20.5 mm |
| permukaan | |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 200:1 (Typ.) |
| warna paparan | Full color , CIE193142% |
| masa tindak balas | 15/40 (Typ.)(Tr/Td) |
| sudut pandangan | 55/55/50/45 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 2 pcsCCFLEmbedded (Inverter) |
| antara muka isyarat | Analog RGB, 41 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | DMPC |
