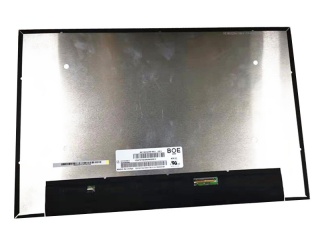

| Nombor Bahagian | NE160QDM-N63 |
| Jenama | BOE |
| Saiz | 16.0 |
| Permohonan | Laptop |
| Resolusi | 2560×1600 |
| Komposisi | Oxide TFT-LCD , LCM |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | 10S6P |
| Antara muka | |
| jenama panel | BOE |
| saiz panel | 16.0" |
| resolusi | 2560(RGB)×1600, WQXGA, 188PPI |
| kawasan paparan | 344.678(W)×215.424(H) mm |
| saiz garis besar | 349.68(W)×224.42(H) ×4.6(D) mm |
| kecerahan | 400 cd/m² (Typ.) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 100% sRGB |
| kekerapan | 60Hz |
| gaya bentuk | Slim (PCBA Bent, T≤3.0mm) |
| model panel | NE160QDM-N63 (BOE09BA) |
| jenis panel | Oxide TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1500:1 (Typ.) (TM) |
| mod paparan | ADS, Normally Black, Transmissive |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| jenis lampu | 10S6P WLED , 15K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Laptop |
