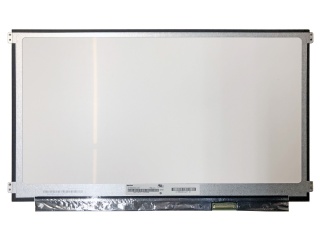

| Nombor Bahagian | N156DCE-GA1 |
| Jenama | Innolux |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 3840×2160 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | Innolux |
| model panel | N156DCE-GA1 (CMN15E1) |
| saiz panel | 15.6" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 3840(RGB)×2160, UHD, 283PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 344.218(W)×193.622(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 367.98(W)×218.8(H) ×3.2(D) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| mod paparan | AAS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 16/14 (Typ.)(Tr/Td) |
| warna paparan | 16.7M 72% NTSC |
| jenis lampu | WLED , 15K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| permohonan | Laptop |
| antara muka isyarat | eDP (4 Lanes) , eDP1.2 , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
