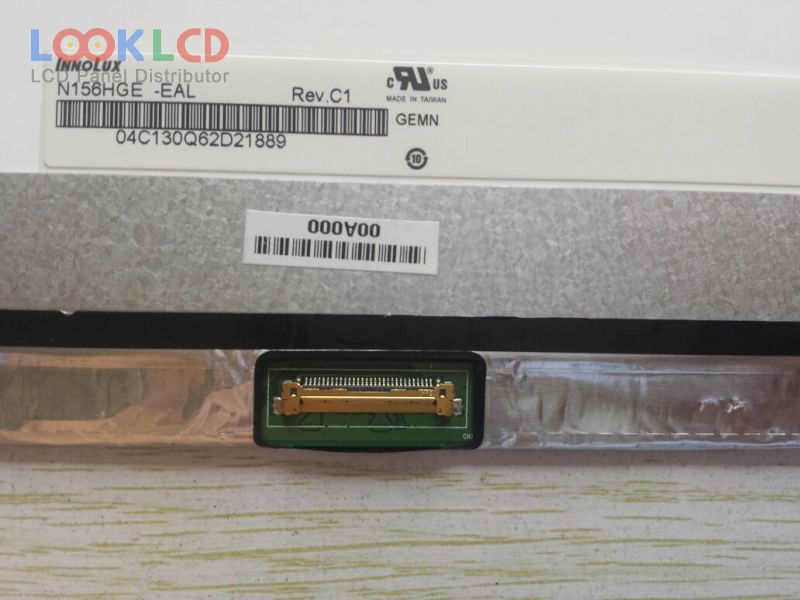

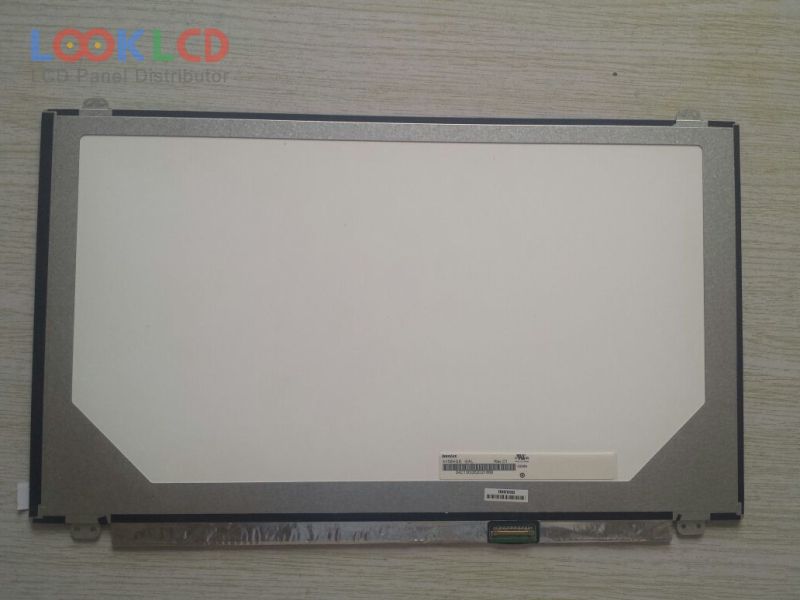

| Nombor Bahagian | N156HGE-EAL Rev.C1 |
| Jenama | Innolux |
| Saiz | 15.6 |
| Permohonan | NBPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | INNOLUX |
| model panel | N156HGE-EAL Rev.C1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.6 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 344.16×193.59 mm |
| garis besar | 359.5×224.3×3.2 mm |
| gaya bentuk | Slim (PCBA Flat, Depth ≤3.2mm) |
| permukaan | Antiglare (Haze 24%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193194% |
| masa tindak balas | 3/8 (Typ.)(Tr/Td) |
| sudut pandangan | 85/85/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | eDP (2 Lanes), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| LTN156AT05-H07 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| LTN156HT01-B01 | Samsung | 15.6 | 1920×1080 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| LP133WF6-SSA1 | LG Display | 13.3 | 1920×1080 |
| LP141WX5-TLC1 | LG Display | 14.1 | 1280×800 |
| LP154WX4-TLB2 | LG Display | 15.4 | 1280×800 |
| LP171WU5-TLA2 | LG Display | 17.1 | 1920×1200 |
| LTD121EX9D | TOSHIBA | 12.1 | 1280×768 |
| LTN140AT21-W01 | Samsung | 14.0 | 1366×768 |
| M125NWN1 R0 | IVO | 12.5 | 1366×768 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
