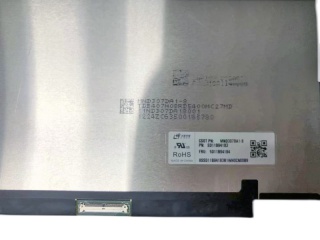

| Nombor Bahagian | MND307DA1-8 |
| Jenama | CSOT |
| Saiz | 13.3 |
| Permohonan | Laptop |
| Resolusi | 2560×1600 |
| Komposisi | LTPS TFT-LCD , LCM |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | CSOT |
| saiz panel | 13.3" |
| resolusi | 2560(RGB)×1600, WQXGA, 227PPI |
| kawasan paparan | 286.08(W)×178.8(H) mm |
| saiz garis besar | 291.08(W)×195.3(H) ×2.4(D) mm |
| kecerahan | 300 cd/m² (Typ.) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 99% sRGB |
| kekerapan | 60Hz |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| antara muka isyarat | eDP (4 Lanes) , HBR1 (2.7G/lane) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | MND307DA1-8 |
| jenis panel | LTPS TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare |
| nisbah kontras | 1500:1 (Typ.) (TM) |
| mod paparan | FFS, Normally Black, Transmissive |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 15K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Laptop |
