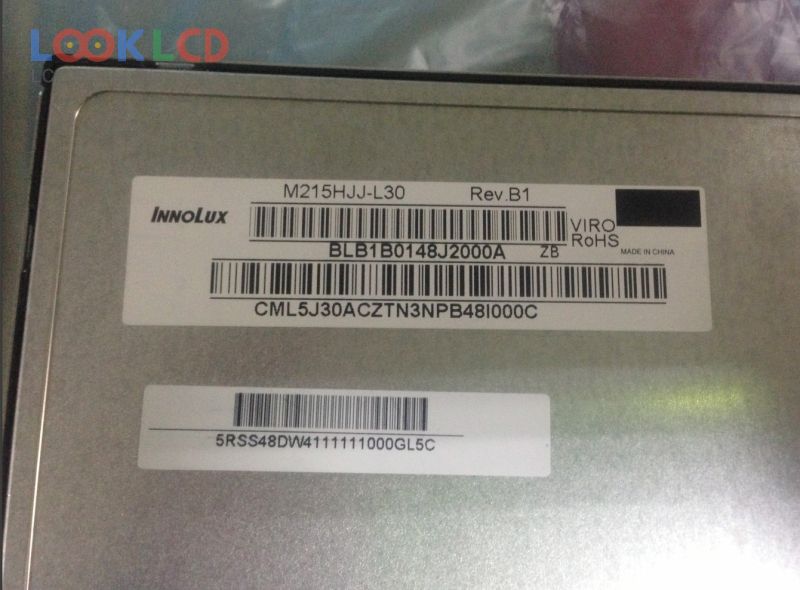

M215HJJ-L30 Rev.B1

M215HJJ-L30 Rev.B1
M215HJJ-L30 Rev.B1 thumb
Jenama
Innolux
Saiz
21.5
Permohonan
DMPC
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
250
CR
3000:1
Warna
16.7M
Lampu latar
WLED
Antara muka
LVDS
In Stock
12300
Spesifikasi

Nombor Bahagian M215HJJ-L30 Rev.B1
JenamaInnolux
Saiz21.5
PermohonanDMPC
Resolusi1920×1080
KomposisiLCM
Kecerahan250
CR3000:1
Warna16.7M
Lampu latarWLED
Antara mukaLVDS
jenama panelINNOLUX
model panelM215HJJ-L30 Rev.B1
jenis panel a-Si TFT-LCD , LCM
saiz panel21.5 inch
resolusi1920(RGB)×1080 , FHD
mod paparanMVA, Normally Black, Transmissive
kawasan aktif476.064×267.786 mm
garis besar495.6×292.2×11.5 mm
permukaanAntiglare (Haze 25%), Hard coating (3H)
kecerahan250 cd/m² (Typ.)
nisbah kontras3000:1 (Typ.)
warna paparan16.7M (8-bit), CIE193172%
masa tindak balas15/5 (Typ.)(Tr/Td)
sudut pandangan88/88/88/88 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu4 stringsWLEDWithout Driver
antara muka isyaratLVDS (2 ch, 8-bit), 30 pins
voltan masukan5.0V (Typ.)
permohonanDMPC
