Samsung LTN154X3-L0D lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com

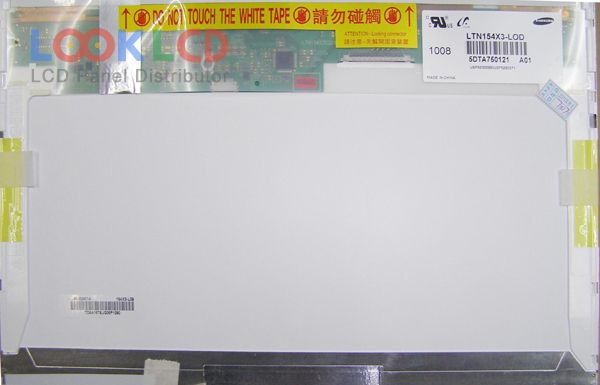

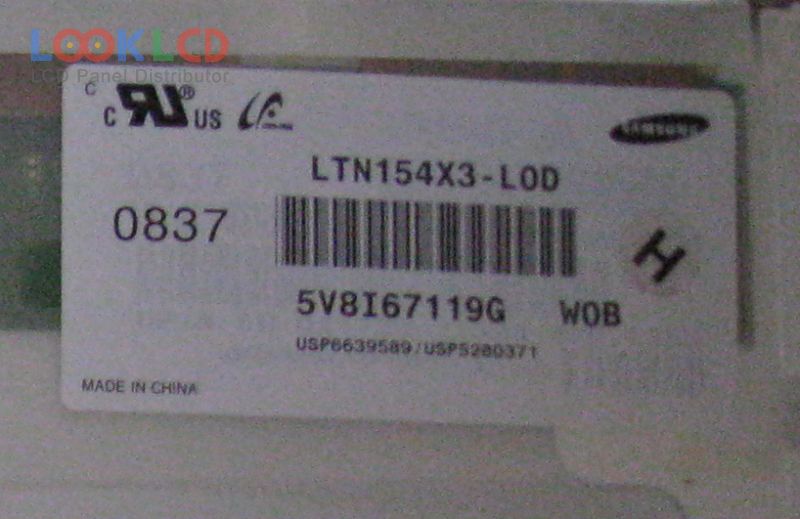

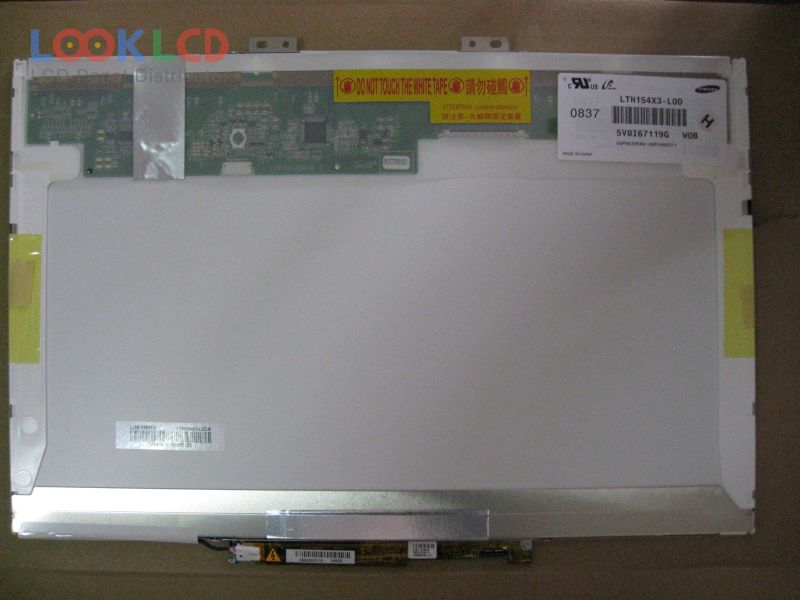

LTN154X3-L0D


Jenama
Samsung
Saiz
15.4
Permohonan
NBPC
Resolusi
1280×800
Komposisi
LCM
Kecerahan
220
CR
300:1
Warna
262K
Lampu latar
CCFL
Antara muka
LVDS
In Stock
10965
Spesifikasi

Nombor Bahagian LTN154X3-L0D
JenamaSamsung
Saiz15.4
PermohonanNBPC
Resolusi1280×800
KomposisiLCM
Kecerahan220
CR300:1
Warna262K
Lampu latarCCFL
Antara mukaLVDS
jenama panelSAMSUNG
model panelLTN154X3-L0D
jenis panel a-Si TFT-LCD , LCM
saiz panel15.4 inch
resolusi1280(RGB)×800 , WXGA
mod paparanTN, Normally White, Transmissive
kawasan aktif331.2×207 mm
garis besar344×242.5×6.5 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanAntiglare (Haze 40%), Hard coating (3H)
kecerahan220 cd/m² (Typ.)
nisbah kontras300:1 (Min.)
warna paparan262K (6-bit)
masa tindak balas25/35 (Typ./Max.)(Tr+Td)
sudut pandangan40/40/10/30 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu1 pcsCCFLEmbedded (Inverter)
antara muka isyaratLVDS (1 ch, 6-bit), 30 pins
voltan masukan3.3V (Typ.)
permohonanNBPC
