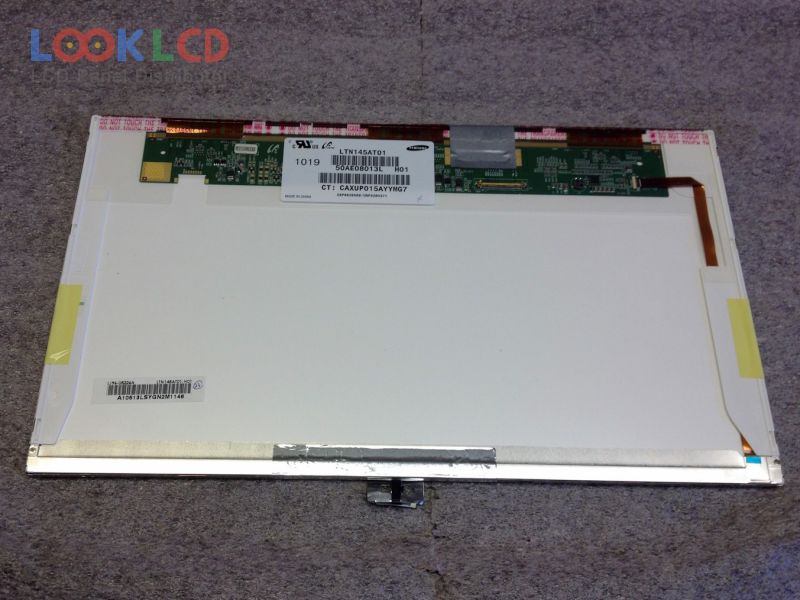

| Nombor Bahagian | LTN145AT01-H01 |
| Jenama | Samsung |
| Saiz | 14.5 |
| Permohonan | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN145AT01-H01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 14.5 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 321.693×180.864 mm |
| garis besar | 336.8×196.9×5.3 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193160% |
| masa tindak balas | 8 (Typ.)(G to G) |
| sudut pandangan | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
| LP145WH1-TLA1 | LG Display | 14.5 | 1366×768 |
| LTN145AT01-H01 | Samsung | 14.5 | 1366×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| LP154WE2-TLA7 | LG Display | 15.4 | 1680×1050 |
| LP156WH1-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLG1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPD1 | LG Display | 15.6 | 1366×768 |
| LTN133AT23-B01 | Samsung | 13.3 | 1366×768 |
| LTN156AT17-D01 | Samsung | 15.6 | 1366×768 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
