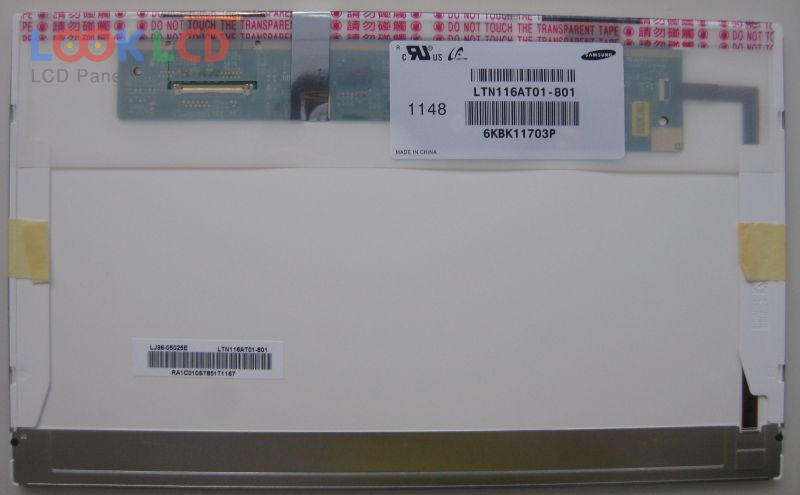

LTN116AT01-801


Jenama
Samsung
Saiz
11.6
Permohonan
NOPC
Resolusi
1366×768
Komposisi
LCM
Kecerahan
200
CR
500:1
Warna
262K
Lampu latar
WLED
Antara muka
LVDS
In Stock
2425
Spesifikasi

Nombor Bahagian LTN116AT01-801
JenamaSamsung
Saiz11.6
PermohonanNOPC
Resolusi1366×768
KomposisiLCM
Kecerahan200
CR500:1
Warna262K
Lampu latarWLED
Antara mukaLVDS
jenama panelSAMSUNG

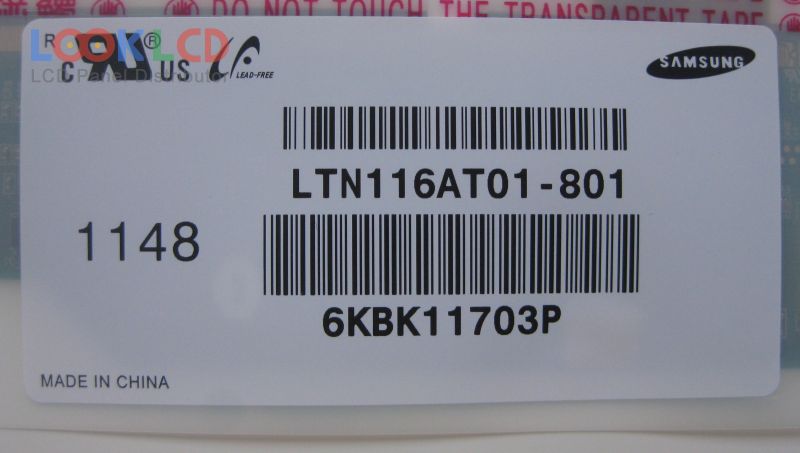

model panelLTN116AT01-801
jenis panel a-Si TFT-LCD , LCM
saiz panel11.6 inch
resolusi1366(RGB)×768 , WXGA
mod paparanTN, Normally White, Transmissive
kawasan aktif256.125×144 mm
garis besar268×161.5×5.2 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanAntiglare (Haze 25%), Hard coating (3H)
kecerahan200 cd/m² (Typ.)
nisbah kontras500:1 (Typ.)
warna paparan262K (6-bit), CIE193145%
masa tindak balas15 (Typ.)(Tr+Td)
sudut pandangan45/45/15/35 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu9S4PWLEDEmbedded (LED Driver)

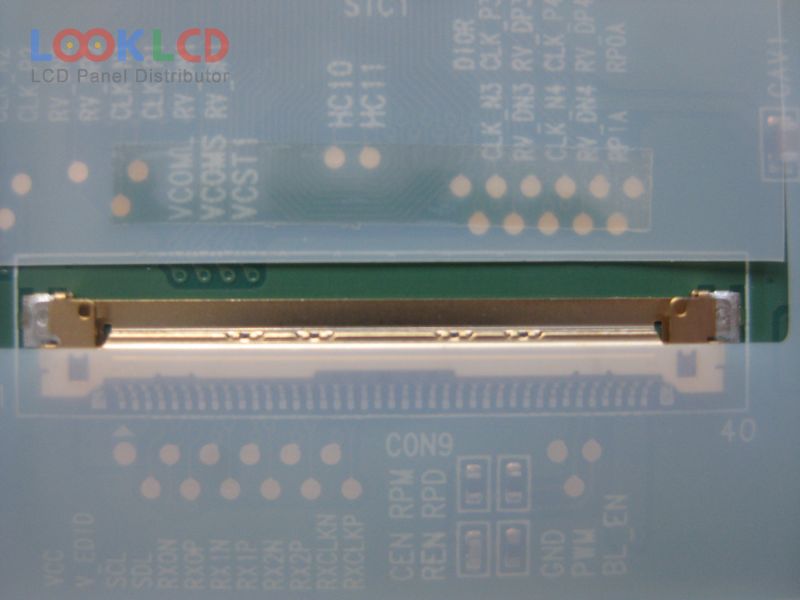

antara muka isyaratLVDS (1 ch, 6-bit), 40 pins
voltan masukan3.3V (Typ.)
permohonanNOPC
