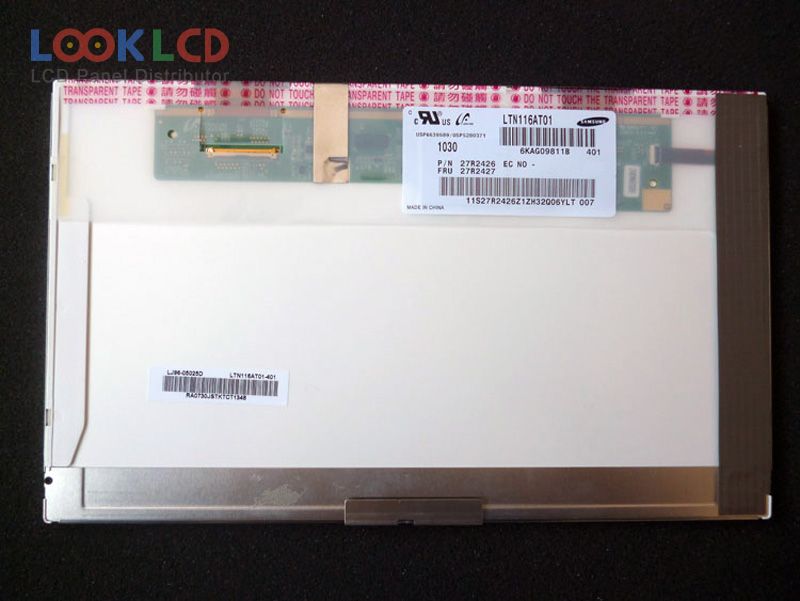

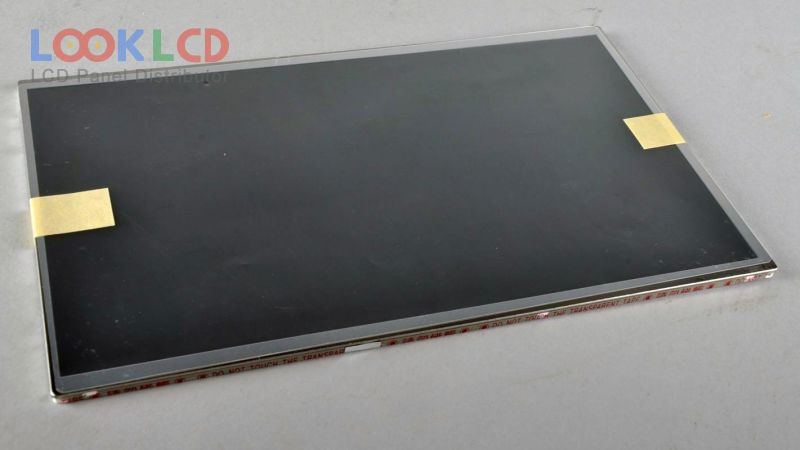

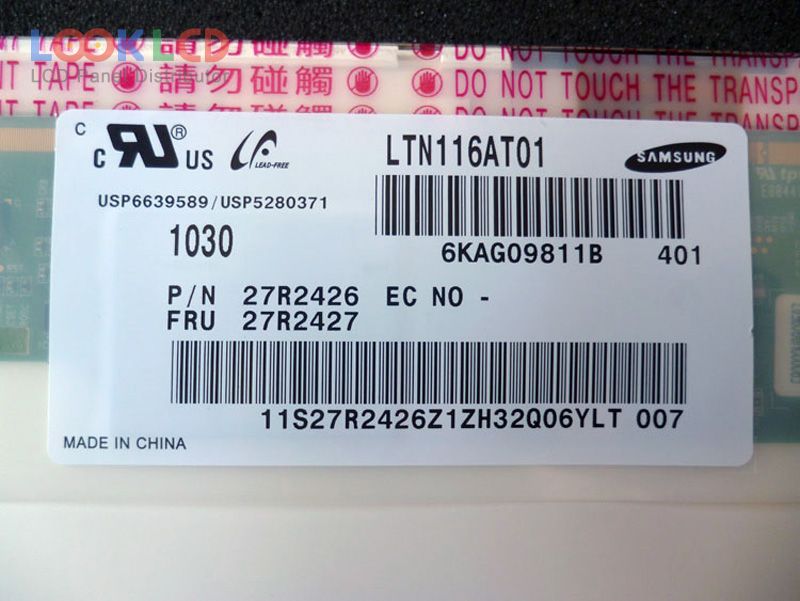

| Nombor Bahagian | LTN116AT01-401 |
| Jenama | Samsung |
| Saiz | 11.6 |
| Permohonan | NOPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN116AT01-401 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 11.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 256.125×144 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 262K (6-bit) |
| masa tindak balas | |
| sudut pandangan | |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit) |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NOPC |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| M101NWT2 R1 | IVO | 10.1 | 1024×600 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
| SVA101WV1(01TA)(A) | SVA-NEC | 10.0 | 1024×576 |
