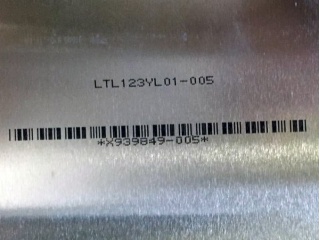

| Nombor Bahagian | LTL123YL01-005 |
| Jenama | SAMSUNG |
| Saiz | 12.3 |
| Permohonan | Pad & Tablet |
| Resolusi | 2736×1824 |
| Komposisi | Oxide TFT-LCD , LCM |
| Kecerahan | |
| CR | 1400:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | SAMSUNG |
| saiz panel | 12.3" |
| resolusi | 2736(RGB)×1824, 267PPI |
| kawasan paparan | 259.783(W)×173.189(H) mm |
| kecerahan | - |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M |
| kekerapan | 60Hz |
| berat panel | - |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | LTL123YL01-005 |
| jenis panel | Oxide TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| nisbah kontras | 1400:1 (Typ.) (TM) |
| mod paparan | PLS, Normally Black, Transmissive |
| masa tindak balas | - |
| jenis lampu | WLED , 12K hours |
| skrin sentuh | Without |
| permohonan | Pad & Tablet |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
