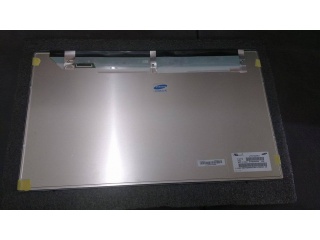

| Nombor Bahagian | LTF230AN01 |
| Jenama | SAMSUNG |
| Saiz | 23.0 |
| Permohonan | TV Sets |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 4000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | SAMSUNG |
| model | LTF230AN01 |
| saiz pepenjuru | 23.0 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 1366(RGB)×768 [WXGA] 68PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 508.152(H)×285.696(V) mm |
| garis besar malap. | - |
| kecerahan | - |
| nisbah kontras | 4000:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 8 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| mod operasi | PVA, Normally Black, Transmissive |
| warna sokongan | 16.7M 68% NTSC |
| sumber cahaya | WLED |
| berat badan | - |
| direka untuk | TV Sets |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | LVDS (1 ch, 8-bit) , 30 pins Connector |
| bekalan kuasa | 12.0V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
