| Nombor Bahagian | LT104V3-100 |
| Jenama | Samsung |
| Saiz | 10.4 |
| Permohonan | NBPC |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 70 |
| CR | 100:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | SAMSUNG |

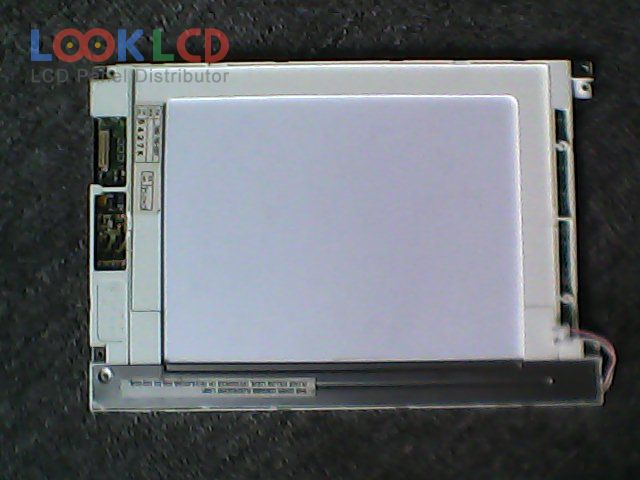

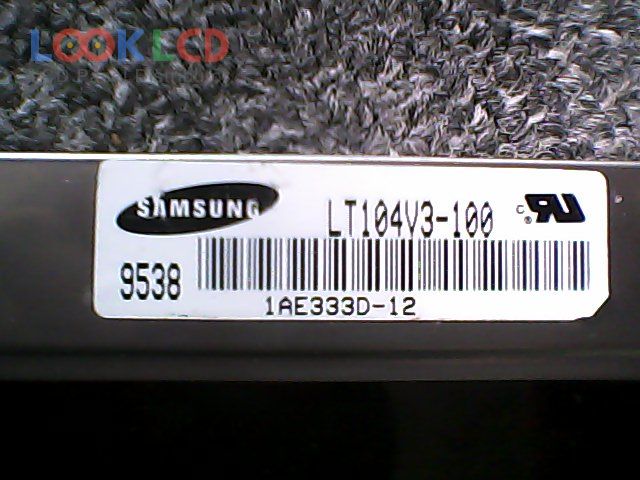

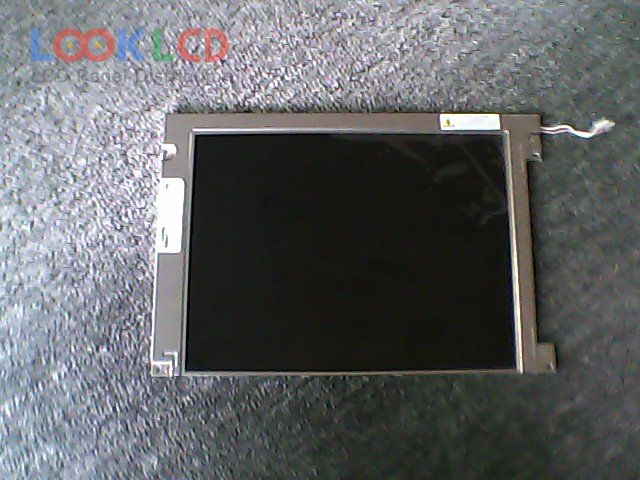

| model panel | LT104V3-100 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 211.2×158.4 mm |
| garis besar | 264×180 mm |
| permukaan | |
| kecerahan | 70 cd/m² (Typ.) |
| nisbah kontras | 100:1 (Min.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 20/40 (Typ.)(Tr/Td) |
| sudut pandangan | 48/48/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB, 31 pins |
| voltan masukan | 5.0V (Typ.)(VDD) |
| permohonan | NBPC |
| KCB104VG2CA-A43 | Kyocera | 10.4 | 640×480 |
| LM104VC1T51R | SHARP | 10.4 | 640×480 |
| LP104S2 | LG Display | 10.4 | 800×600 |
| LT104AC36000 | TOSHIBA | 10.4 | 1024×768 |
| LT104AD18F00 | TOSHIBA | 10.4 | 800×600 |
| LT104V3-100 | Samsung | 10.4 | 640×480 |
| LTA104S2-L01 | Samsung | 10.4 | 800×600 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| TM104SDH02 | Tianma | 10.4 | 800×600 |
| TX26D203VM2BAA | KOE | 10.4 | 1024×768 |
| B121EW02 V0 | AUO | 12.1 | 1280×800 |
| B141XG10 V0 | AUO | 14.1 | 1024×768 |
| B154EW02 V7 | AUO | 15.4 | 1280×800 |
| LP140WF6-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP156WD1-TLB2 | LG Display | 15.6 | 1600×900 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LTD133EWDD | TOSHIBA | 13.3 | 1280×800 |
| LTN133AT01-001 | Samsung | 13.3 | 1280×800 |
| N156B3-L0A | Innolux | 15.6 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
