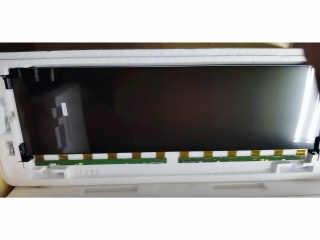

| Nombor Bahagian | LSM490YP01 |
| Jenama | SAMSUNG |
| Saiz | 49 |
| Permohonan | Desktop Monitor |
| Resolusi | 3840×1080 |
| Komposisi | a-Si TFT-LCD, CELL |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 1.07B |
| Lampu latar | No |
| Antara muka | eDP |
| jenama panel | SAMSUNG |
| model panel | LSM490YP01 |
| saiz panel | 49" |
| jenis panel | a-Si TFT-LCD, CELL |
| resolusi | 3840(RGB)×1080, 81PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 1195.78(W)×336.31(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 1208.18(W)×350.012(H) ×1.11(D) mm |
| permukaan | Antiglare (Haze 25%) |
| kecerahan | 0 cd/m² |
| nisbah kontras | 3000:1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| mod paparan | SVA, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 8 (Typ.)(G to G |
| kedalaman kaca | 0.40+0.40 mm |
| ketransmisian | 4.1% (Typ.)(with Polarizer) |
| warna paparan | 1.07B |
| jenis lampu | No B/L |
| kekerapan | 144Hz |
| skrin sentuh | - |
| ic pemandu | COF Built-in 12 source chips |
| berat panel | 1.30Kgs (Max.) |
| permohonan | Desktop Monitor |
| antara muka isyarat | eDP (8 Lanes) , HBR1 (2.7G/lane) , 51 pins Connector |
| voltan masukan | 12.0V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
