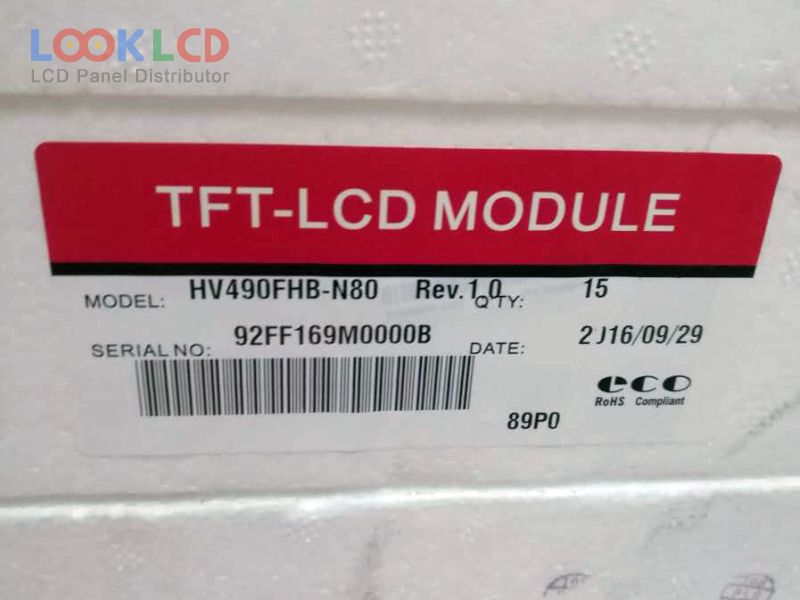

| Nombor Bahagian | HV490FHB-N80 |
| Jenama | BOE |
| Saiz | 49 |
| Permohonan | LCTV |
| Resolusi | 1920×1080 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | No B/L |
| Antara muka | LVDS |
| jenama panel | BOE |
| model panel | HV490FHB-N80 |
| jenis panel | a-Si TFT-LCD , CELL |
| saiz panel | 49 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 1073.78×604 mm |
| permukaan | Antiglare (Haze 1%) |
| ketransmisian | 6.3% (Typ.)(with Polarizer) |
| nisbah kontras | 1200:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193173% |
| masa tindak balas | 8 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| antara muka isyarat | LVDS (2 ch, 8-bit), 51 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | LCTV |
