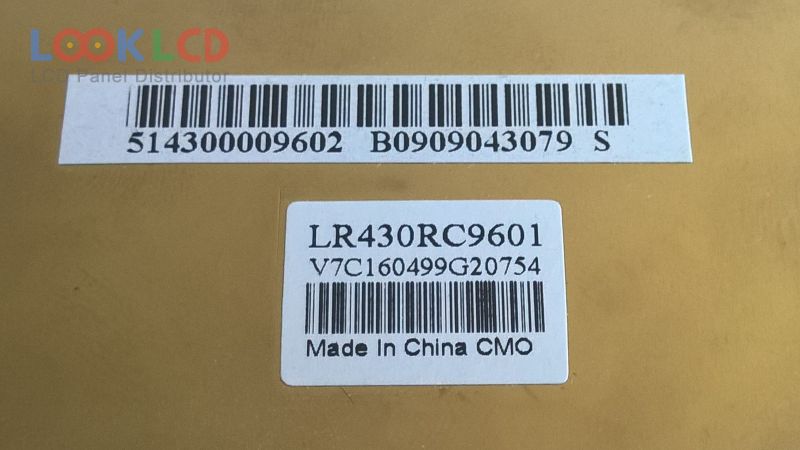

| Nombor Bahagian | LR430RC9601 |
| Jenama | Innolux |
| Saiz | 4.3 |
| Permohonan | PND |
| Resolusi | 480×272 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 550:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | ChiHsin |
| model panel | LR430RC9601 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.3 inch |
| resolusi | 480(RGB)×272 , WQVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 95.04×53.856 mm |
| garis besar | 105.5×67.2 mm |
| permukaan | Antiglare |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 550:1 (Typ.) |
| warna paparan | 16.7M |
| masa tindak balas | 15/15 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/55/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 10S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit), 45 pins |
| voltan masukan | 3.3V (Typ.)(VCC) |
| permohonan | PND |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| ET043001DM6 | EDT | 4.3 | 480×272 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LH430WV1-SD01 | LG Display | 4.3 | 480×800 |
| LQ043T1DG28 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| LR430RC9601 | Innolux | 4.3 | 480×272 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
| TD043MGEB1 | TPO | 4.3 | 800×480 |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| CLAA048LA0BCW | CPT | 4.8 | 800×480 |
| HE050NA-01F | Innolux | 5.0 | 800×480 |
| LMS480JC01 | Samsung | 4.8 | 1024×600 |
| LMS480KC01 | Samsung | 4.8 | 800×480 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LMS500HF06 | Samsung | 5.0 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| TS047NAARB01-00 | Tianma | 4.7 | 480×272 |
