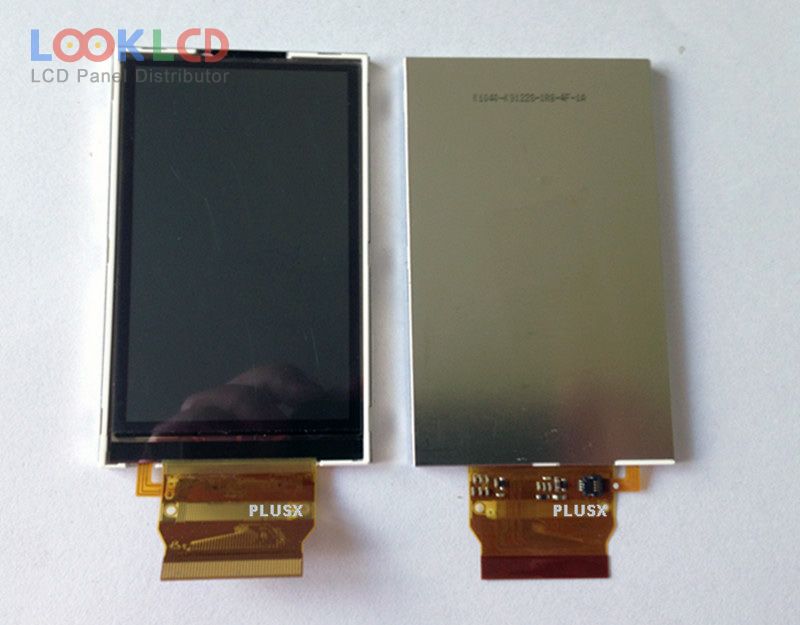

| Nombor Bahagian | LQ030B7UB02 |
| Jenama | SHARP |
| Saiz | 3.0 |
| Permohonan | HHP |
| Resolusi | 240×400 |
| Komposisi | LCM |
| Kecerahan | 150 |
| CR | 100:1 |
| Warna | 65K/262K |
| Lampu latar | WLED |
| Antara muka | CPU/RGB/SPI |
| jenama panel | SHARP |
| model panel | LQ030B7UB02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.0 inch |
| resolusi | 240(RGB)×400 , WQVGA |
| mod paparan | TN, Normally White, Transflective |
| kawasan aktif | 38.88×64.8 mm |
| garis besar | 47.28×76.4 mm |
| permukaan | Hard coating (3H), Antireflection |
| kecerahan | 150 cd/m² (Typ.) |
| nisbah kontras | 100:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| warna paparan | 65K/262K |
| masa tindak balas | 30/30 (Typ.)(Tr/Td) |
| sudut pandangan | 60/60/65/50 (Typ.)(CR≥2)(L/R/U/D) |
| jenis lampu | 6S1PWLED |
| antara muka isyarat | CPU/RGB/SPI, 45 pins |
| permohonan | HHP |
| 32WQF0H | SII | 3.2 | 240×400 |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| COM41H4M31XLC | ORTUSTECH | 4.1 | 320×240 |
| DLC0090AZG | Other | 0.91 | 80×160 |
| DLC0430NZG-T-1 | Other | 4.3 | 480×272 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LQ030B7UB02 | SHARP | 3.0 | 240×400 |
| LQ038B7DB01 | SHARP | 3.8 | 320×480 |
| TFTMD030035 | JDI | 3.0 | 640×480 |
