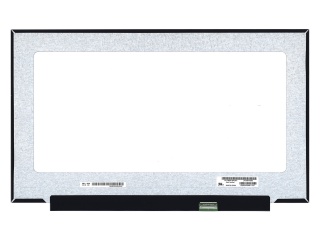

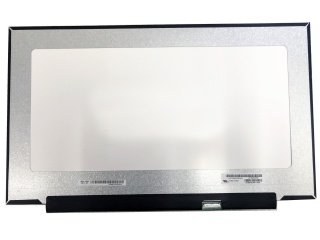

| Nombor Bahagian | LP173WF5-SPZ1 |
| Jenama | LG Display |
| Saiz | 17.3 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | LG Display |
| saiz panel | 17.3" |
| resolusi | 1920(RGB)×1080, FHD, 127PPI |
| kawasan paparan | 381.888(W)×214.812(H) mm |
| saiz garis besar | 389.89(W)×238.31(H) ×3.5(D) mm |
| kecerahan | 250 cd/m² (Typ.) |
| sudut pandangan | 80/80/80/80 (MIn.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.2M 72% NTSC |
| kekerapan | 60Hz |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| antara muka isyarat | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | LP173WF5-SPZ1 (LGD063B) |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare, Hard coating (3H) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | IPS, Normally Black, Transmissive |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 15K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Laptop |
