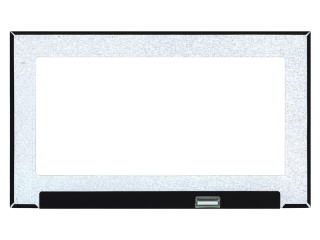

| Nombor Bahagian | LP156WFD-SPH2 |
| Jenama | LG Display |
| Saiz | 15.6 |
| Permohonan | Laptop Industrial |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| pengilang | LG Display |
| saiz skrin | 15.6 inch |
| nombor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| kawasan aktif (mm) | 344.16 × 193.59 (H×V) |
| kecerahan | 220 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 262K 45% NTSC |
| bentuk garis besar | Slim (PCBA Bent, T≤3.0mm) |
| kadar segar semula | 60Hz |
| jenis isyarat | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | LP156WFD-SPH2 |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 350.66 × 205.69 × 5.4 (H×V×D) |
| nisbah kontras | 700 : 1 (Typ.) (TM) |
| tindak balas | 25 (Typ.)(Tr+Td) ms |
| mod kerja | IPS, Normally Black, Transmissive |
| lampu latar | WLED , 15K hours , With LED Driver |
| digunakan untuk | Laptop Industrial |
| skrin sentuh | In-Cell Touch |
| LP156WD1-TLB4 | LG Display | 15.6 | 1600×900 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WD1-TPB1 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLE1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN2 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
