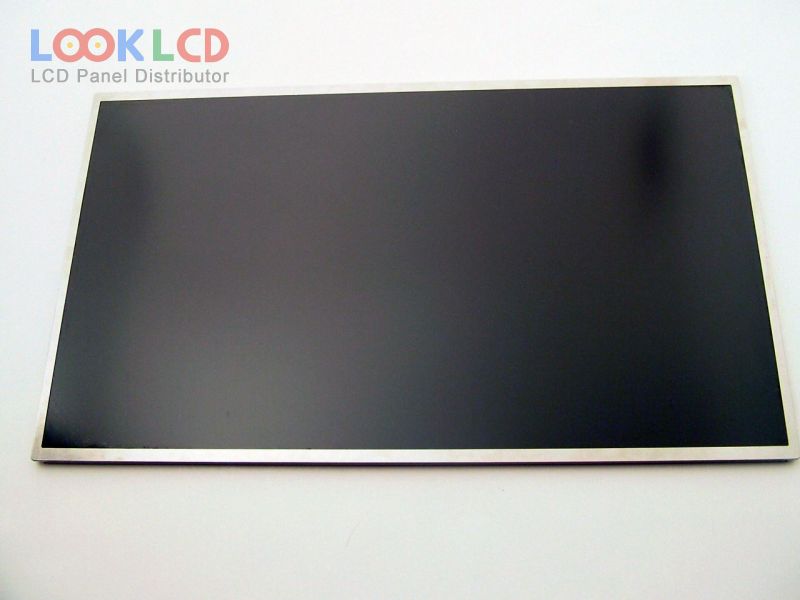

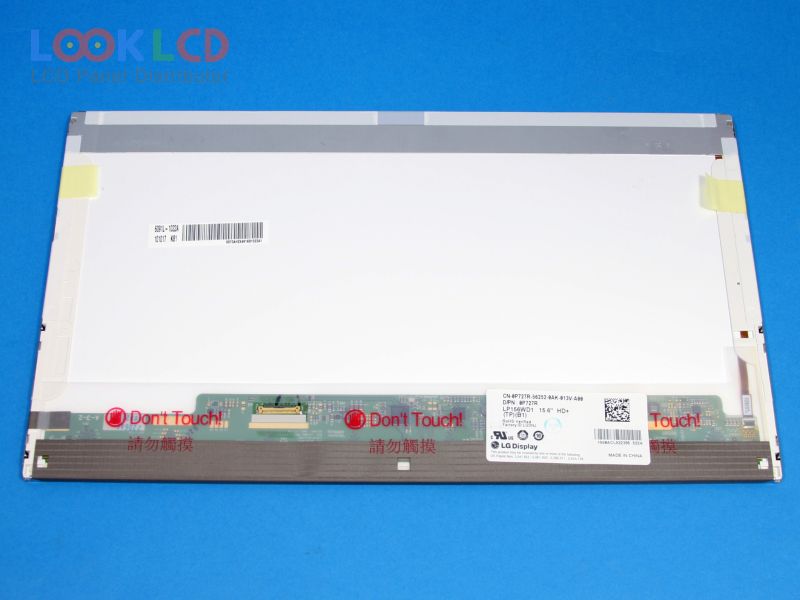

| Nombor Bahagian | LP156WD1-TPB1 |
| Jenama | LG Display |
| Saiz | 15.6 |
| Permohonan | NBPC |
| Resolusi | 1600×900 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | LG Display |
| model panel | LP156WD1-TPB1 2 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.6 inch |
| resolusi | 1600(RGB)×900 , HD+ |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 344.16×193.59 mm |
| garis besar | 359.3×209.5×5.7 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Min.) |
| warna paparan | 262K (6-bit), CIE193160% |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| sudut pandangan | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | eDP (1 Lane), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
