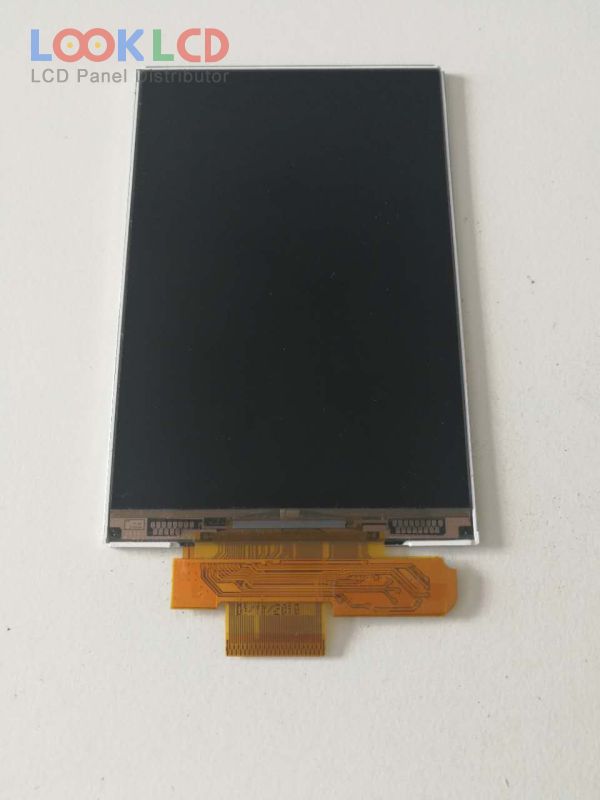

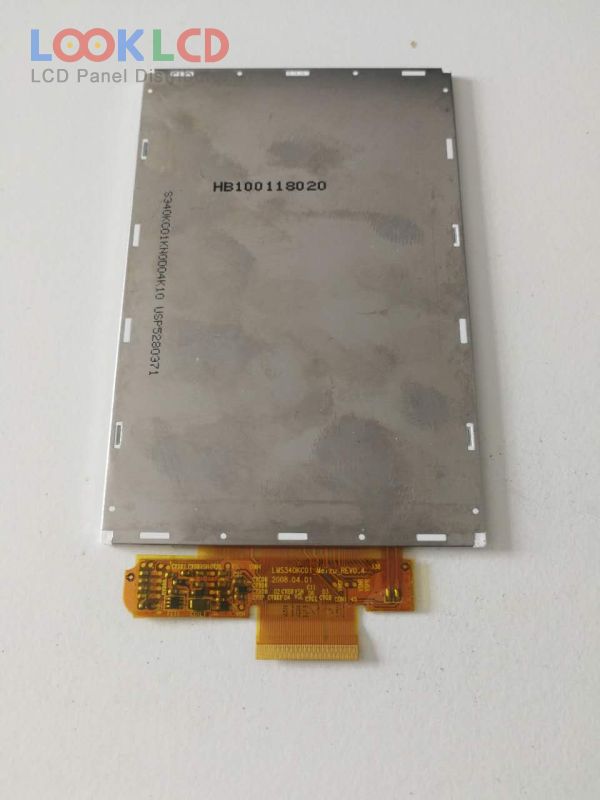

| Nombor Bahagian | LMS340KC01-001 |
| Jenama | Samsung |
| Saiz | 3.4 |
| Permohonan | MPH |
| Resolusi | 720×480 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SAMSUNG |
| model panel | LMS340KC01-001 |
| jenis panel | LTPS TFT-LCD , LCM |
| saiz panel | 3.4 inch |
| resolusi | 720(RGB)×480 |
| mod paparan | PVA, Normally Black, Transmissive |
| kawasan aktif | 71.82×47.88 mm |
| garis besar | 82.22×53.88×21 mm |
| permukaan | Hard coating (2H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) + SPI, 45 pins |
| voltan masukan | 1.8/2.8V (Typ.)(VDD1/VDD2) |
| permohonan | MPH |
