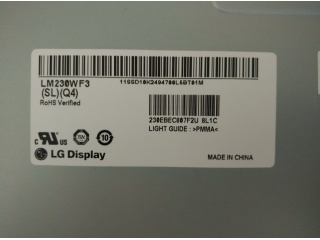

| Nombor Bahagian | LM230WF3-SLQ4 |
| Jenama | LG Display |
| Saiz | 23.0 |
| Permohonan | Desktop Monitor |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 18S2P |
| Antara muka | LVDS |
| pengilang | LG Display |
| nama model | LM230WF3-SLQ4 |
| saiz skrin | 23.0 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 95PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 509.184 × 286.416 (H×V) |
| garis besar (mm) | 533.2 × 312 × 11 (H×V×D) |
| kawasan bezel (mm) | 513.8 × 291.0 (H×V) |
| rawatan | - |
| kecerahan | - |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| tindak balas | 14 (Typ.)(G to G) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.7M |
| lampu latar | 18S2P WLED , 30K hours |
| jisim | 1.93/2.03Kgs (Typ./Max.) |
| digunakan untuk | Desktop Monitor |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (2 ch, 8-bit) , Connector 30 pins |
| bekalan voltan | 5.0V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
