LG Display LM190WX1-TLC1 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com

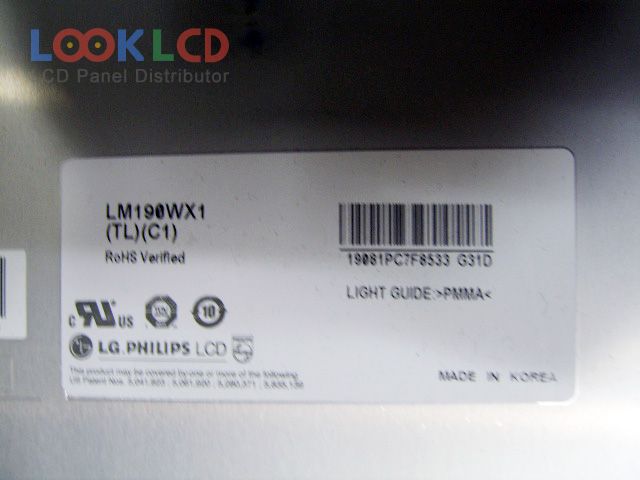

LM190WX1-TLC1


Jenama
LG Display
Saiz
19.0
Permohonan
DMPC
Resolusi
1440×900
Komposisi
LCM
Kecerahan
300
CR
850:1
Warna
16.7M
Lampu latar
CCFL
Antara muka
LVDS
In Stock
9117
Spesifikasi

Nombor Bahagian LM190WX1-TLC1
JenamaLG Display
Saiz19.0
PermohonanDMPC
Resolusi1440×900
KomposisiLCM
Kecerahan300
CR850:1
Warna16.7M
Lampu latarCCFL
Antara mukaLVDS
jenama panelLG.Philips LCD
model panelLM190WX1-TLC1
jenis panel a-Si TFT-LCD , LCM
saiz panel19.0 inch
resolusi1440(RGB)×900 , WXGA+
mod paparanTN, Normally White, Transmissive
kawasan aktif410.4×256.5 mm
garis besar427.2×277.4×15.8 mm
permukaanAntiglare, Hard coating (3H)
kecerahan300 cd/m² (Typ.)
nisbah kontras850:1 (Typ.)
warna paparan16.7M (6-bit + Hi-FRC), CIE193172%
masa tindak balas1.3/3.7 (Typ.)(Tr/Td)
sudut pandangan80/80/75/85 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu4 pcsCCFLWithout Driver
antara muka isyaratLVDS (2 ch, 8-bit), 30 pins
voltan masukan5.0V (Typ.)
permohonanDMPC
Model Keluarga
G190ETN01.0 AUO 19.0 1280×1024
HSD190MEN4-A03 HannStar 19.0 1280×1024
LM190E09-TLD1 LG Display 19.0 1280×1024
LM190WX1-TLA1 LG Display 19.0 1440×900
LM190WX1-TLC1 LG Display 19.0 1440×900
LM190WX1-TLL1 LG Display 19.0 1440×900
LM190WX2-TLK1 LG Display 19.0 1440×900
LTM190EX-L21 Samsung 19.0 1280×1024
M190E5-L0G Innolux 19.0 1280×1024
M190ETN01.0 AUO 19.0 1280×1024
