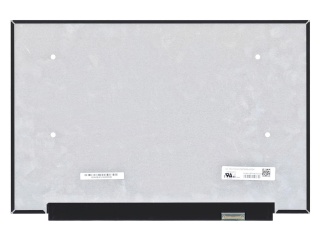

| Nombor Bahagian | LM140GF1L02 |
| Jenama | PANDA |
| Saiz | 14.0 |
| Permohonan | Laptop |
| Resolusi | 2560×1600 |
| Komposisi | LCM , Oxide TFT-LC |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| pengilang | PANDA |
| saiz skrin | 14.0 inch |
| nombor piksel | 2560(RGB)×1600 (WQXGA) 215PPI |
| kawasan aktif (mm) | 301.824 × 188.64 (H×V) |
| kawasan bezel (mm) | - |
| kecerahan | 300 cd/m² (Typ.) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 16.7M 71% NTSC |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| kadar segar semula | 60Hz |
| jenis isyarat | eDP (2 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 30 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | LM140GF1L02 (NCP006A) 1 Compatible |
| jenis skrin | LCM , Oxide TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 306.824 × 205.84 × 2.4 (H×V×D) |
| rawatan | Antiglare (Haze 25%) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| tindak balas | 25 (Typ.)(Tr+Td) ms |
| mod kerja | FFS, Normally Black, Transmissive |
| lampu latar | WLED , 15K hours , With LED Driver |
| digunakan untuk | Laptop |
| skrin sentuh | Without |
| B140XTN03.2 | AUO | 14.0 | 1366×768 |
| B140XTN03.5 | AUO | 14.0 | 1366×768 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| CLAA140WB01A | CPT | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HSD140PNW1-B00 | HannStar | 14.0 | 1600×900 |
| LP140WH1-TLC3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
