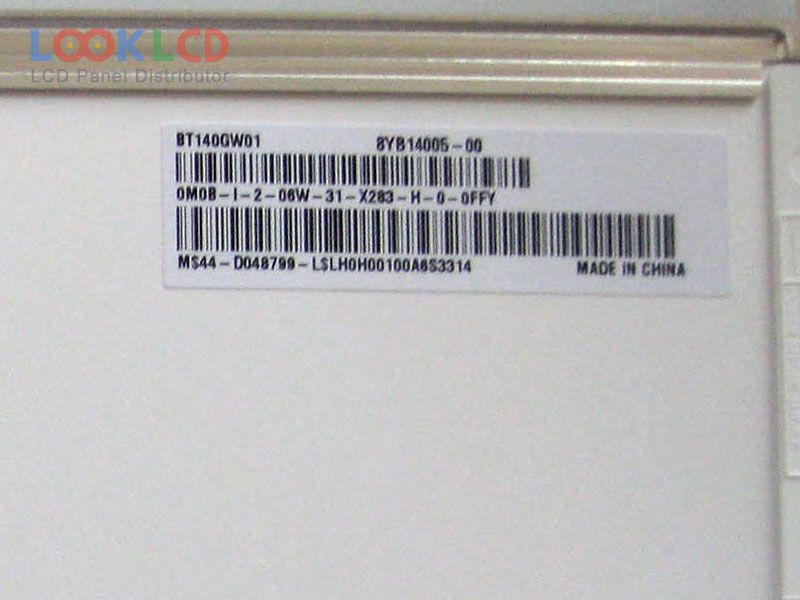

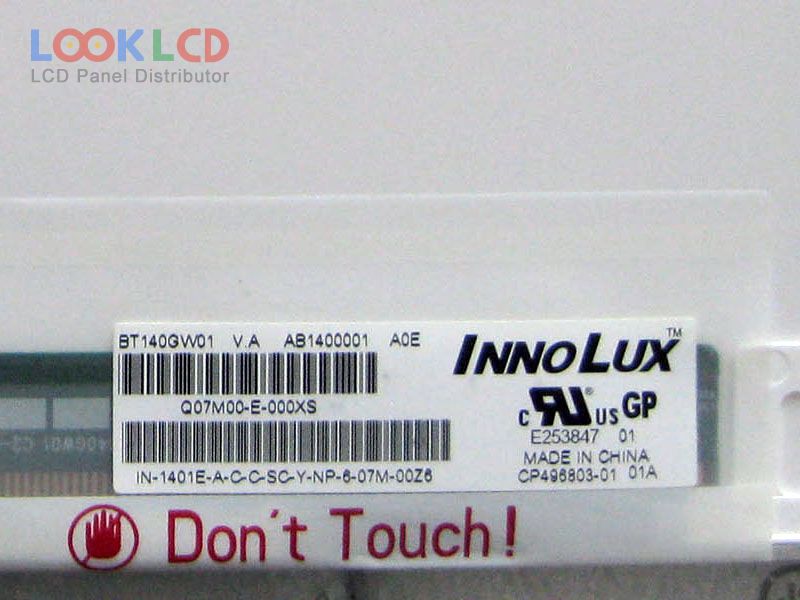

BT140GW01 V.A

BT140GW01 V.A
BT140GW01 V.A
BT140GW01 V.A
BT140GW01 V.A thumb BT140GW01 V.A thumb BT140GW01 V.A thumb
Jenama
Innolux
Saiz
14.0
Permohonan
NBPC
Resolusi
1366×768
Komposisi
LCM
Kecerahan
220
CR
600:1
Warna
262K
Lampu latar
WLED
Antara muka
LVDS
In Stock
16133
Spesifikasi

Nombor Bahagian BT140GW01 V.A
JenamaInnolux
Saiz14.0
PermohonanNBPC
Resolusi1366×768
KomposisiLCM
Kecerahan220
CR600:1
Warna262K
Lampu latarWLED
Antara mukaLVDS
jenama panelCHIMEI INNOLUX
model panelBT140GW01 V.A
jenis panel a-Si TFT-LCD , LCM
saiz panel14.0 inch
resolusi1366(RGB)×768 , WXGA
mod paparanTN, Normally White, Transmissive
kawasan aktif309.399×173.952 mm
garis besar324×192.5×5.2 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan220 cd/m² (Typ.)
nisbah kontras600:1 (Typ.)
warna paparan262K (6-bit), CIE193145%
masa tindak balas8 (Typ.)(G to G)
sudut pandangan40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampuWLEDEmbedded (LED Driver)

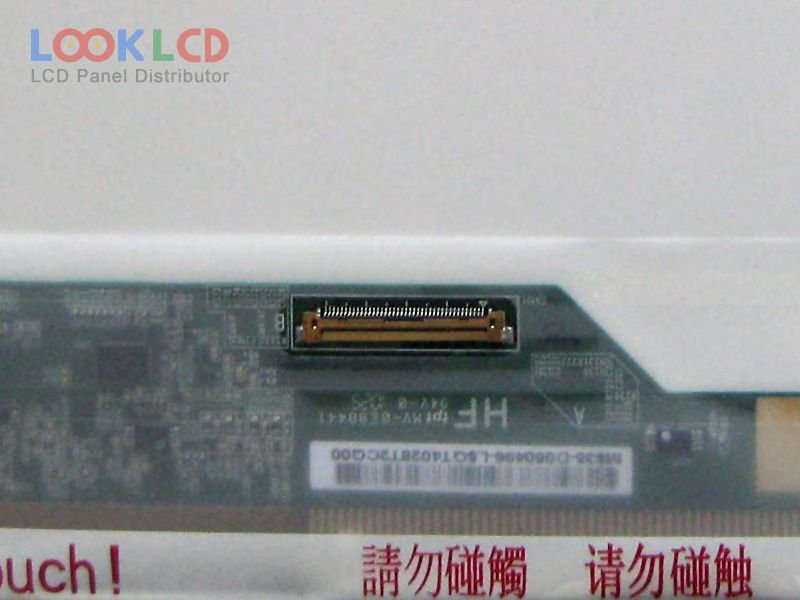

antara muka isyaratLVDS (1 ch, 6-bit), 40 pins
voltan masukan3.3V (Typ.)
permohonanNBPC
Model Keluarga
BT140GW01 V.0 Innolux 14.0 1366×768
BT140GW01 V.4 Innolux 14.0 1366×768
BT140GW01 V.5 Innolux 14.0 1366×768
BT140GW01 V.A Innolux 14.0 1366×768
BT140GW02 V.0 Innolux 14.0 1366×768
BT140GW02 V.2 Innolux 14.0 1366×768
BT140GW02 V.9 Innolux 14.0 1366×768
BT140GW03 V.2 Innolux 14.0 1366×768
LP140WH2-TLE3 LG Display 14.0 1366×768
LTN140AT28-W01 Samsung 14.0 1366×768
