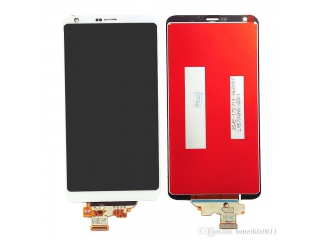

| Nombor Bahagian | LH570QH6-SD01 |
| Jenama | LG Display |
| Saiz | 5.7 |
| Permohonan | Mobile Phone |
| Resolusi | 1440×2880 |
| Komposisi | Assembly , a-Si TF |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | 4S3P |
| Antara muka | MIPI |
| pengilang | LG Display |
| saiz skrin | 5.7 inch |
| nombor piksel | 1440(RGB)×2880 564PPI |
| kawasan aktif (mm) | 64.8 × 129.6 (H×V) |
| kawasan bezel (mm) | - |
| kecerahan | 500 cd/m² (Typ.) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 16.7M 85% NTSC |
| jisim | 26.6±2.7g |
| kadar segar semula | 60Hz |
| jenis isyarat | MIPI (4 data lanes) , 54 pins Connector |
| bekalan voltan | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| nama model | LH570QH6-SD01 |
| jenis skrin | Assembly , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 68.72 × 145.7 (H×V×D) |
| rawatan | Hard coating |
| nisbah kontras | 1500 : 1 (Typ.) (TM) |
| tindak balas | 25 (Typ.)(Tr+Td) ms |
| mod kerja | - |
| lampu latar | 4S3P WLED , No Driver |
| digunakan untuk | Mobile Phone |
| skrin sentuh | PCAP |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| DLC0570BDG-3 | Other | 5.7 | 640×480 |
| EL320.240.36 HB | Lumineq | 5.7 | 320×240 |
| G057VGE-T01 | Innolux | 5.7 | 640×480 |
| KCS057QV1AJ-G20 | Kyocera | 5.7 | 320×240 |
| LQ057Q3DC02 | SHARP | 5.7 | 320×240 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| PD057VT3 | E Ink | 5.7 | 640×480 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
