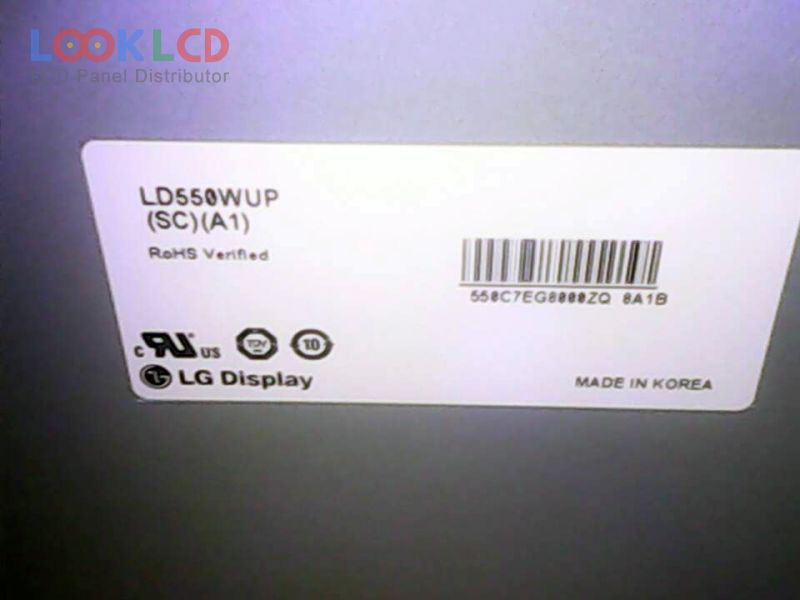

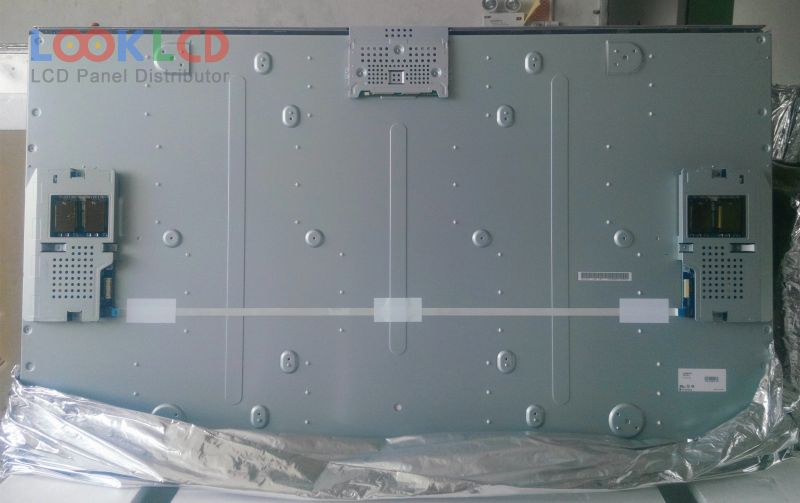

| Nombor Bahagian | LD550WUP-SCA1 |
| Jenama | LG Display |
| Saiz | 55 |
| Permohonan | PID |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 700 |
| CR | 1300:1 |
| Warna | 16.7M/1.06B |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | LG Display |
| model panel | LD550WUP-SCA1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 55 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | S-IPS, Normally Black, Transmissive |
| kawasan aktif | 1209.6×680.4 mm |
| garis besar | 1240.6×711.4 mm |
| permukaan | Antiglare (Haze 10%), Hard coating (3H) |
| kecerahan | 700 cd/m² (Typ.) |
| nisbah kontras | 1300:1 (Typ.) |
| warna paparan | 16.7M/1.06B (8-bit / 8-bit + FRC), CIE193172% |
| masa tindak balas | 10 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 120Hz |
| jenis lampu | CCFLEmbedded (Inverter) |
| antara muka isyarat | LVDS (4 ch, 8/10-bit), 92 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | PID |
