LG Display LC470EUF-PGF1 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

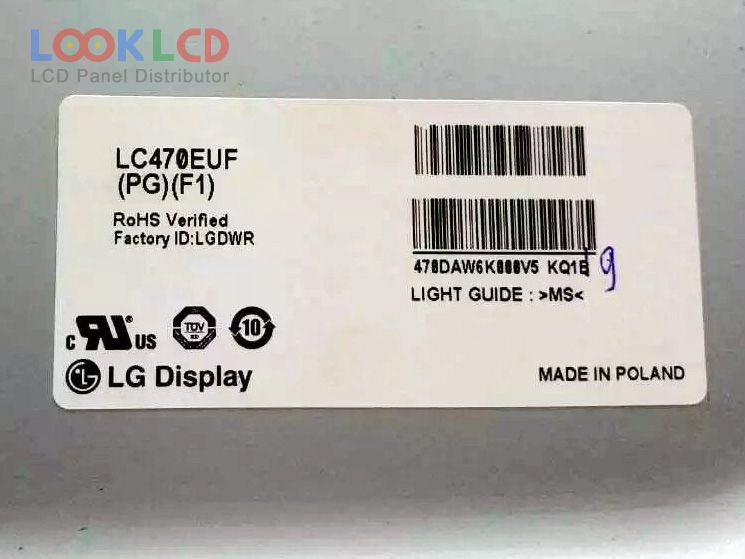

LC470EUF-PGF1

LC470EUF-PGF1
LC470EUF-PGF1 thumb
Jenama
LG Display
Saiz
47
Permohonan
LCTV
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
400
CR
1400:1
Warna
16.7M/1.06B
Lampu latar
WLED
Antara muka
LVDS
In Stock
6048
Spesifikasi

Nombor Bahagian LC470EUF-PGF1
JenamaLG Display
Saiz47
PermohonanLCTV
Resolusi1920×1080
KomposisiLCM
Kecerahan400
CR1400:1
Warna16.7M/1.06B
Lampu latarWLED
Antara mukaLVDS
jenama panelLG Display
model panelLC470EUF-PGF1
jenis panel a-Si TFT-LCD , LCM
saiz panel47 inch
resolusi1920(RGB)×1080 , FHD
mod paparanS-IPS, Normally Black, Transmissive
kawasan aktif1039.68×584.82 mm
garis besar1059.5×616.2 mm
permukaanAntiglare (Haze 1%), Hard coating (3H)
kecerahan400 cd/m² (Typ.)
nisbah kontras1400:1 (Typ.)
warna paparan16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172%
masa tindak balas5 (Typ.)(G to G); 8 (Typ.)(MPRT)
sudut pandangan89/89/89/89 (Min.)(CR≥10)(L/R/U/D)
kekerapan120Hz
jenis lampuWLEDWithout Driver
antara muka isyaratLVDS (4 ch, 8/10-bit), 92 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
Model Keluarga
LC470EUD-SCA1 LG Display 47 1920×1080
LC470EUD-SDM1 LG Display 47 1920×1080
LC470EUE-SEM2 LG Display 47 1920×1080
LC470EUE-SER1 LG Display 47 1920×1080
LC470EUF-FEP1 LG Display 47 1920×1080
LC470EUF-PFF1 LG Display 47 1920×1080
LC470EUG-PEF1 LG Display 47 1920×1080
LC470EUN-SDF1 LG Display 47 1920×1080
LC470EUN-SFF1 LG Display 47 1920×1080
LC470EUN-SFM1 LG Display 47 1920×1080
