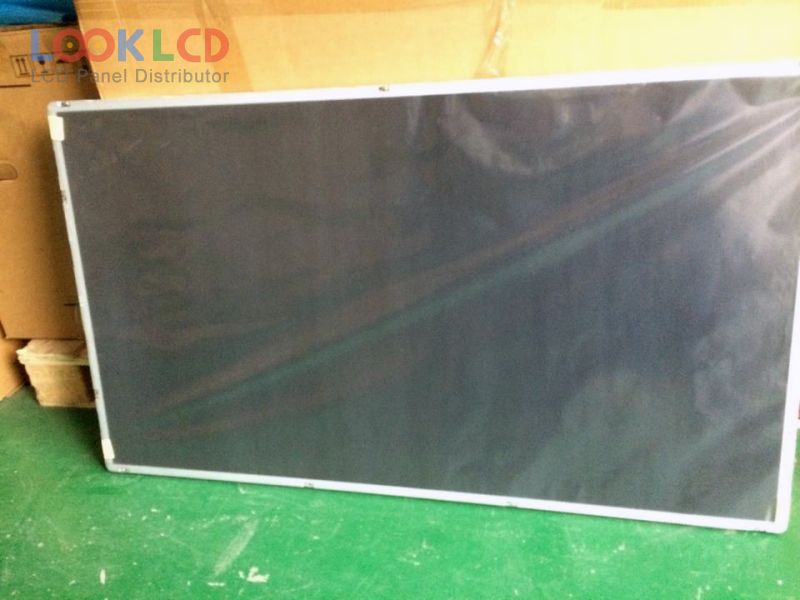

LC420WUF-SBN1

LC420WUF-SBN1
LC420WUF-SBN1
LC420WUF-SBN1 thumb LC420WUF-SBN1 thumb
Jenama
LG Display
Saiz
42
Permohonan
LCTV
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
500
CR
1400:1
Warna
16.7M/1.06B
Lampu latar
EEFL
Antara muka
LVDS
In Stock
6912
Spesifikasi

Nombor Bahagian LC420WUF-SBN1
JenamaLG Display
Saiz42
PermohonanLCTV
Resolusi1920×1080
KomposisiLCM
Kecerahan500
CR1400:1
Warna16.7M/1.06B
Lampu latarEEFL
Antara mukaLVDS
jenama panelLG Display
model panelLC420WUF-SBN1
jenis panel a-Si TFT-LCD , LCM
saiz panel42 inch
resolusi1920(RGB)×1080 , FHD
mod paparanS-IPS, Normally Black, Transmissive
kawasan aktif930.24×523.26 mm
garis besar965.2×558.2 mm
permukaanAntiglare (Haze 10%), Hard coating (3H)
kecerahan500 cd/m² (Typ.)
nisbah kontras1400:1 (Typ.)
warna paparan16.7M/1.06B (8-bit / 8-bit + Dithering)
masa tindak balas5 (Typ.)(G to G); 8 (Typ.)(MPRT)
sudut pandangan89/89/89/89 (Min.)(CR≥10)(L/R/U/D)
kekerapan120Hz
jenis lampu18 pcsEEFLWithout Driver
antara muka isyaratLVDS (4 ch, 8/10-bit), 92 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
