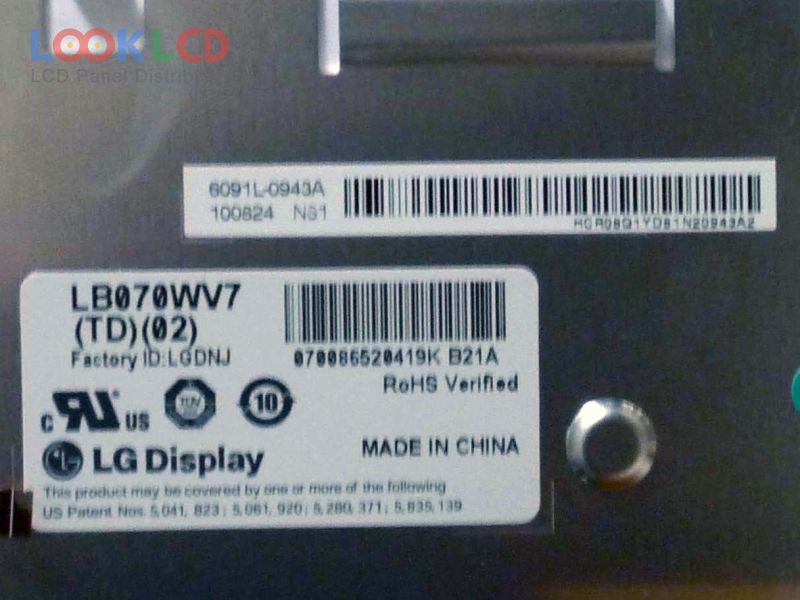

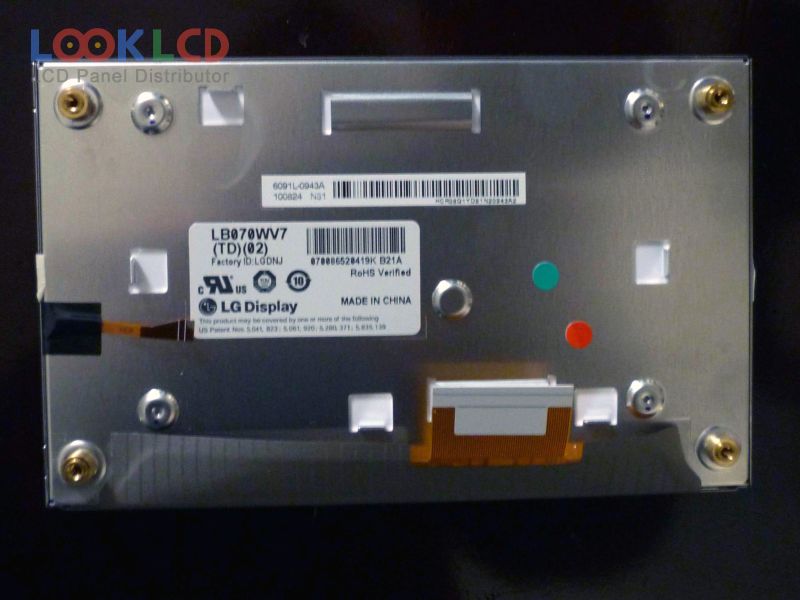

| Nombor Bahagian | LB070WV7-TD02 |
| Jenama | LG Display |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | LG Display |
| model panel | LB070WV7-TD02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 152.4×91.44 mm |
| garis besar | 164.4×102.2×11.6 mm |
| permukaan | Antiglare |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 7/18 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 7S2PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 60 pins |
| voltan masukan | 3.3/9.5/18.5/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| permohonan | CNS |
| LB070WQ5-TD01 | LG Display | 7.0 | 480×240 |
| LB070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD12 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD17 | LG Display | 7.0 | 800×480 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LB070WV4-TJ01 | LG Display | 7.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| A070FW03 V1 | AUO | 7.0 | 480×234 |
| C030DW01 V0 | AUO | 3.0 | 320×240 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| PM070WX5 | E Ink | 7.0 | 800×480 |
| TM050LDZ00 | Tianma | 5.0 | 240×400 |
