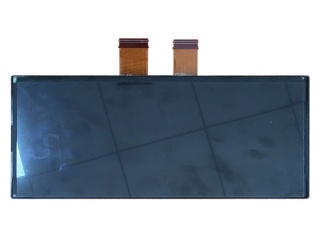

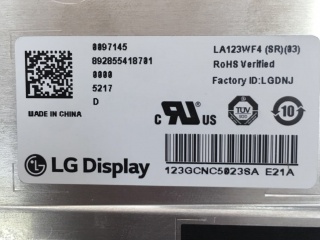

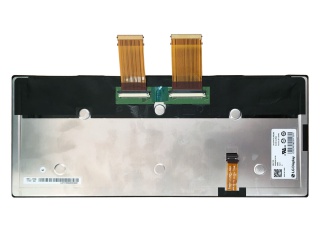

| Nombor Bahagian | LA123WF4-SR03 |
| Jenama | LG Display |
| Saiz | 12.3 |
| Permohonan | Automotive Display |
| Resolusi | 1920×720 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | RSDS |
| jenama | LG Display |
| model | LA123WF4-SR03 |
| saiz pepenjuru | 12.3 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×720 167PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 292.032(H)×109.512(V) mm |
| garis besar malap. | 310(H)×128(V) ×10.75(D) mm |
| kawasan bezel | 296.03(H)×113.5(V) mm |
| rawatan | Hard coating |
| kecerahan | 600 cd/m² (Min.) |
| nisbah kontras | 800:1 (Min.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 30 (Max.)(G to G); 25 (Typ.)(MPRT) |
| sudut pandangan | 89/89/89/89 (Min.)(CR≥10) |
| mod operasi | IPS, Normally Black, Transmissive |
| warna sokongan | 16.7M 77% NTSC |
| sumber cahaya | WLED [11S4P] , 10K hours , W/O Driver |
| berat badan | 385/400g (Typ./Max.) |
| direka untuk | Automotive Display |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | RSDS (2 Channel) , 110 pins FPC |
| bekalan kuasa | 3.3/13.0V (Typ.)(VCC/VDD) |
| persekitaran | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
