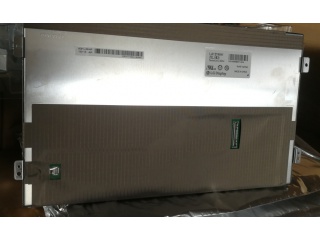

| Nombor Bahagian | LA121WH1-SL02 |
| Jenama | LG Display |
| Saiz | 12.1 |
| Permohonan | Automotive Display |
| Resolusi | 1280×720 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 8S3P |
| Antara muka | LVDS |
| pengilang | LG Display |
| nama model | LA121WH1-SL02 |
| saiz skrin | 12.1 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1280(RGB)×720 (WXGA) 121PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 266.88 × 150.12 (H×V) |
| garis besar (mm) | 287.4 × 163.45 × 9.51 (H×V×D) |
| kawasan bezel (mm) | 269.65 × 152.55 (H×V) |
| rawatan | Antiglare |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10) |
| tindak balas | 17/13 (Max.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 62% NTSC |
| lampu latar | 8S3P WLED , 10K hours , No Driver |
| jisim | 417±5g |
| digunakan untuk | Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |

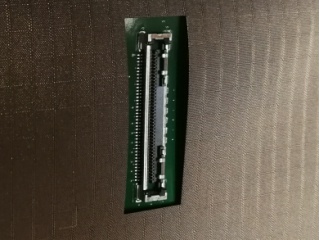

| jenis isyarat | LVDS (1 ch, 8-bit) , 40 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
