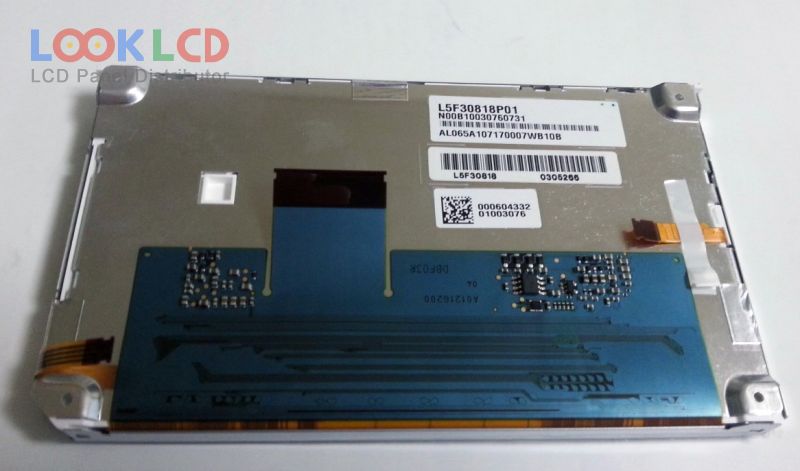

| Nombor Bahagian | L5F30818P01 |
| Jenama | Epson |
| Saiz | 6.5 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 850 |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | Epson |
| model panel | L5F30818P01 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 6.5 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | Normally Black, Transmissive |
| kawasan aktif | 144×78.24 mm |
| garis besar | 159.9×93.4 mm |
| permukaan | |
| kecerahan | 850 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥100)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 5S4PWLEDWithout Driver |
| antara muka isyarat | CMOS (1 ch, 6-bit) + SPI, 50 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | CNS |
