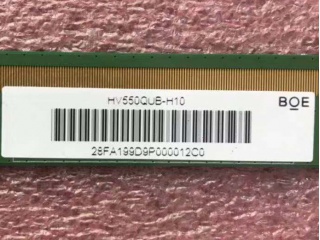

| Nombor Bahagian | HV550QUB-H10 |
| Jenama | BOE |
| Saiz | 55 |
| Permohonan | TV Sets |
| Resolusi | 3840×2160 |
| Komposisi | CELL, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 1.07B |
| Lampu latar | No |
| Antara muka | V-by-One |
| pengilang | BOE |
| nama model | HV550QUB-H10 |
| saiz skrin | 55 inch |
| jenis skrin | CELL, a-Si TFT-LCD |
| nombor piksel | 3840(RGB)×2160 (UHD) 80PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 1209.6 × 680.4 (H×V) |
| garis besar (mm) | 1225.2 × 696.7 × 1.34 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare (Haze 1%), Hard coating (3H) |
| kecerahan | 0 cd/m² |
| nisbah kontras | 1200 : 1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| tindak balas | 8 (Typ.)(G to G) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | ADS, Normally Black, Transmissive |
| ketebalan kaca | 0.50+0.50 mm |
| ketransmisian | 5.4% (Typ.)(with Polarizer) |
| kedalaman warna | 1.07B NTSC |
| lampu latar | No B/L |
| jisim | 2.60Kgs (Typ.) |
| digunakan untuk | TV Sets |
| kadar segar semula | 120Hz |
| skrin sentuh | Without |
| senarai ic pemandu | Built-in COF 6 source chips |
| jenis isyarat | V-by-One 8 lane , Connector 51 pins |
| bekalan voltan | 12.0V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
