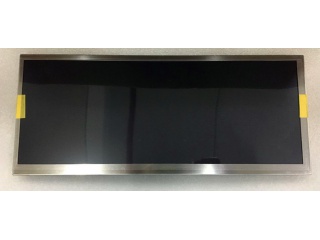

| Nombor Bahagian | HSD123KPW1-A30 |
| Jenama | HannStar |
| Saiz | 12.3 |
| Permohonan | Automotive Display |
| Resolusi | 1920×720 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 11S4P |
| Antara muka | |
| jenama panel | HannStar |
| saiz panel | 12.3" |
| resolusi | 1920(RGB)×720, 167PPI |
| kawasan paparan | 292.032(W)×109.512(H) mm |
| saiz garis besar | 308.1(W)×130(H) ×15.6(D) mm |
| kecerahan | 850 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 71% NTSC |
| kekerapan | 60Hz |
| berat badan | 520g (Typ.) |
| model panel | HSD123KPW1-A30 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 294.8(W)×112.1(H) mm |
| permukaan | Antiglare |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| mod paparan | IPS Pro, Normally Black, Transmissive |
| masa tindak balas | 17/18 (Typ.)(Tr/Td) |
| jenis lampu | 11S4P WLED , 30K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Automotive Display |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
