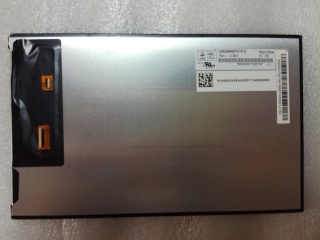

| Nombor Bahagian | HSD080PWW2-B01 |
| Jenama | HannStar |
| Saiz | 8.0 |
| Permohonan | Pad & Tablet Ind |
| Resolusi | 800×1280 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama | HannStar |
| model | HSD080PWW2-B01 |
| saiz pepenjuru | 8.0 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×1280 [WXGA] 188PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 107.64(H)×172.224(V) mm |
| garis besar malap. | 114.8(H)×184.7(V) ×3.71(D) mm |
| kawasan bezel | - |
| rawatan | Hard coating (3H) |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod operasi | IPS Pro, Normally Black, Transmissive |
| warna sokongan | 16.7M 60% NTSC |
| sumber cahaya | WLED [7S3P] , 15K hours , W/O Driver |
| berat badan | 100g (Typ.) |
| direka untuk | Pad & Tablet Industrial |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -30 ~ 65 °C |
