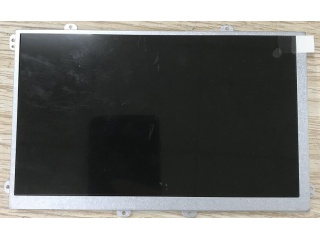

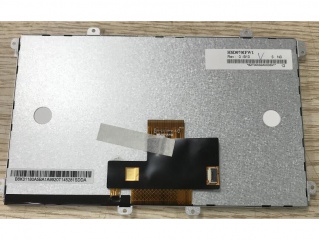

| Nombor Bahagian | HSD070IFW1-B10 |
| Jenama | HannStar |
| Saiz | 7.0 |
| Permohonan | Automotive Display |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | HannStar |
| saiz panel | 7.0" |
| resolusi | 1024(RGB)×600, WSVGA, 170PPI |
| kawasan paparan | 153.6(W)×86.64(H) mm |
| kecerahan | - |
| sudut pandangan | - |
| pandangan terbaik pada | - |
| warna paparan | 16.7M |
| kekerapan | - |
| berat badan | - |
| model panel | HSD070IFW1-B10 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | - |
| jenis lampu | WLED |
| skrin sentuh | Without |
| permohonan | Automotive Display |
