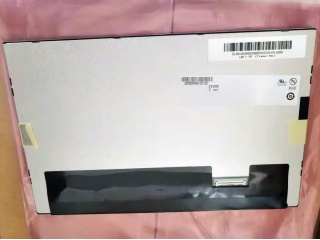

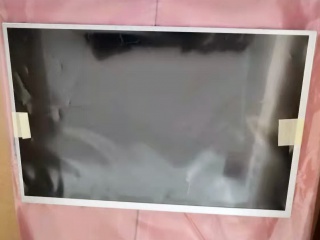

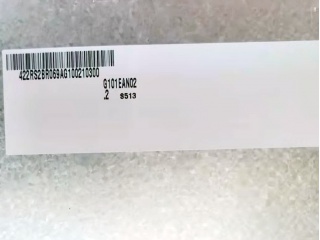

| Nombor Bahagian | G101EAN02.2 |
| Jenama | AUO |
| Saiz | 10.1 |
| Permohonan | Industrial |
| Resolusi | 1280×800 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | AUO |
| model panel | G101EAN02.2 |
| saiz panel | 10.1" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1280(RGB)×800, WXGA, 149PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 216.96(W)×135.6(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 227.91(W)×148(H) ×7.75(D) mm |
| permukaan | Hard coating |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| mod paparan | AHVA, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 29 (Typ.)(Tr+Td) |
| warna paparan | 16.7M 50% NTSC |
| jenis lampu | WLED , 50K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | 290g (Max.) |
| permohonan | Industrial |
| antara muka isyarat | LVDS (1 ch, 8-bit) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| G101EVN01.0 | AUO | 10.1 | 1280×800 |
| G101EVN01.3 | AUO | 10.1 | 1280×800 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| LP101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
